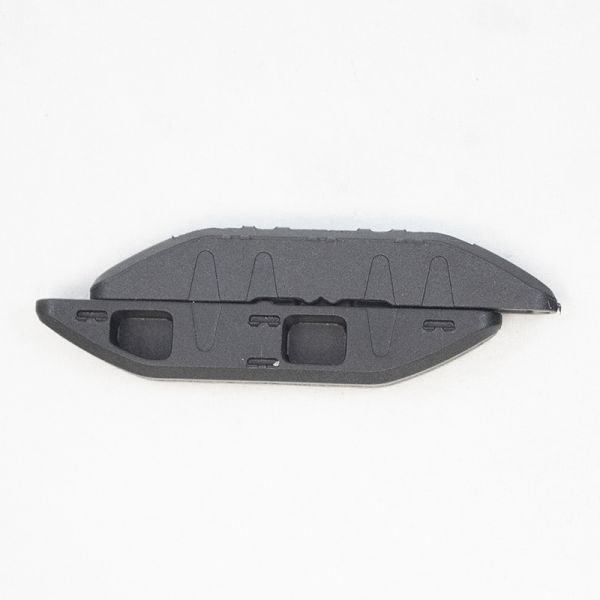

Convenient concealed slide Lock joint

Invisible Joiner Mini 60mm is suited to typical everyday assembly processes without the need for specialized branded tools. The connector system offers flexibility as well as rapid assembly, producing a tight and neat, fully concealed, permanent, and reusable joint every time.

Invisible Joiner Mini 60mm is suitable for numerous applications and can be used with a variety of substrates and building products from 1/2 in. thick and upwards. Invisible Joiner Mini offers strength, durability, versatility, ease of use with limited tools, and no loose fasteners, helping save on labor costs. Modular components can be shipped in flat pack form, delivering significant competitive advantages.

Integrating Invisible Joiner Mini into your products and installations, either in the factory, in the home, or even in the most remote site locations, will ultimately change the functionality and processes used to bring greater profitable results.

Benefits

Assembly with standard 4 in. biscuit cutter
Cabinetry or panels can be fitted permanently or removed with ease
Can be used in substrates of 1/2 in. thickness and upwards
No visible fixings completely concealed joint
Eliminates damage to install panels during final build
Strength, Durability and Versatility
Lower transportation cost flat pack
Lower labor costs with fast on-site assembly
Joining will not interfere with substrate finish (i.e., Veneers, 2pac paint)

Applications

Modular entertainment builds
Locker systems assemblies
Furniture construction and interior fitting
Shop fitting displays and signage
RV and Marine fit outs
Commercial wall paneling and office partitioning
Feature ceilings, walls, cabinetry, shelving
Framing of artwork/mirrors
Toilet/shower partitioning
Wardrobe fit outs
Exhibition and trade events
DIY garden shed and Patio

Direction	Indic. Load Capacity
A	198 lb.
B	220 lb.
C#42;	176 lb.
Tested using particle board and fixed with screws. Ensure sufficient screw embedment in substrate. #42;C in in the direction of lock-up
