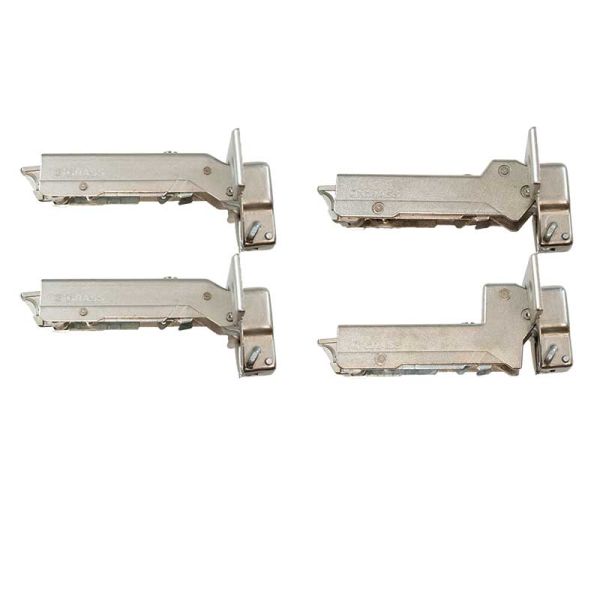

Grass Tiomos 110-Degree Self-Close Hinge

Grass® Tiomos® 110-Deg. Self Close Hinge

Perfect alignment with a twist of the hand.

The Tiomos hinge system offers three-dimensional adjustment for fine adjustment. Depth adjustment (+3/-2mm) is based on the worm gear principle and is continuous and self-locking. Depending on the type of base plate chosen, height adjustment (+- 2mm) can be achieved via a worm gear or through elongated holes (+- 2.5mm). Side adjustment (+- 2mm) is on the hinge arm.

The door edge protrusion is the amount by which the edge of the open door protrudes into the opening and varies depending on the type of hinge and method of fixing. It is stated on the respective catalog page and refers to the stated base plate for the factory setting. It can be changed by changing the height of the base plate and adjusting the lateral adjustment. The Minimum gap is between the closed door and the front of the cabinet.

The drilling distance (DD) is the distance between the door's edge and the cup hole's edge. The cup center (CC) is the distance of the cup drilling distance plus 1/2 of the cup diameter. The door overlay is the part of the cabinet side wall or face frame covered by the door on the hinge side. Example: For a hinge with a cranking of 03, a base plate height (BPH) of 2mm, a drilling distance (DD) of 4mm, and a door overlay of 14mm. Example: For a door thickness (DT) of 17mm and a drilling distance (DD) of 6mm, a a minimum gap of 1mm is needed.

The cup overlay (factory setting) plus drilling distance determine the door overlay.

• Full Overlay (Cranking 00) Using a hinge with a cranking of 00 and a base plate height (BPH) of 00
• Overlay (Cranking 03) Using a hinge with a cranking of 00 and a base plate height (BPH) 03
• Half Overlay (Cranking 9.5) Using a hinge with a cranking of 00 and a base plate height (BPH) 9.5
• Inset (Cranking 19) Inset Using a hinge with a cranking of 00 and a base plate height (BPH) 21

• Face Frame Application
• Steel, nickel plated
• Depth adjustment via worm gear
• Height adjustment via worm gear - total adj. #43;/#45; 2mm
• Side adjustment via hinge
• Use a #2 Pozi drive screwdriver for hinge adjustment
• Attach base plates using all available screw holes
