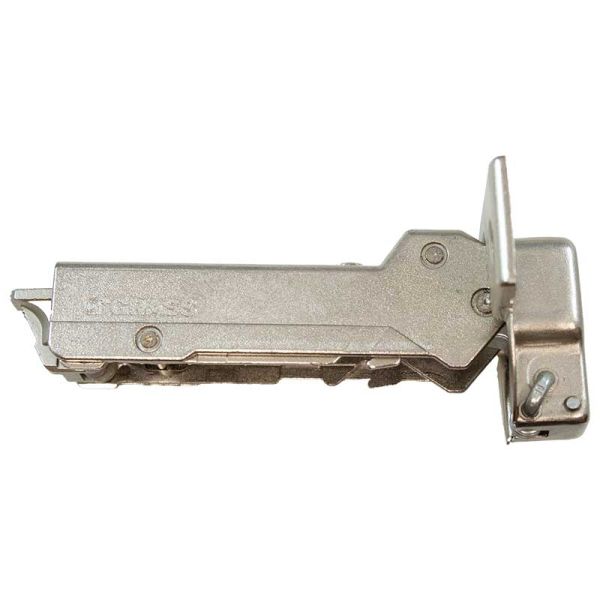

The Tiomos offers two closing actions: the standard Self-close and the popular Soft-close.
The kinematics inside Tiomos
The complex inner workings of this high-tech hinge are hidden from view, but they are most impressive when working as one. With the new kinematics in place the doors are extremely easy to open. This mechanism makes alignment with the smallest of gaps and reveals possible opening up new possibilities to cabinet designers.
Perfect alignment with a twist of the hand.
For fine adjustment, the Tiomos hinge system offers three dimensional adjustment. Depth adjustment (+3/–2mm) is based on the worm gear principle and is continuous and self-locking. Depending on the type of base plate chosen, height adjustment (± 2mm) can be achieved via a worm gear or through elongated holes (± 2.5mm). Side adjustment (± 2mm) is on the hinge arm.
|Product Group||Cabinet Hinges and Drawer Slides|
|Category||Cabinets, Cabinet Hinges|
|Sub-Category||Half Overlay Hinges|
|HINGE OPEN ANGLE||110 DEG|
|FACE FRAME d||No|
|FOR INSET USE PLATE d||No|
|CLOSURE TYPE||Soft Close|
|FOR USE WITH/ON d||No|
