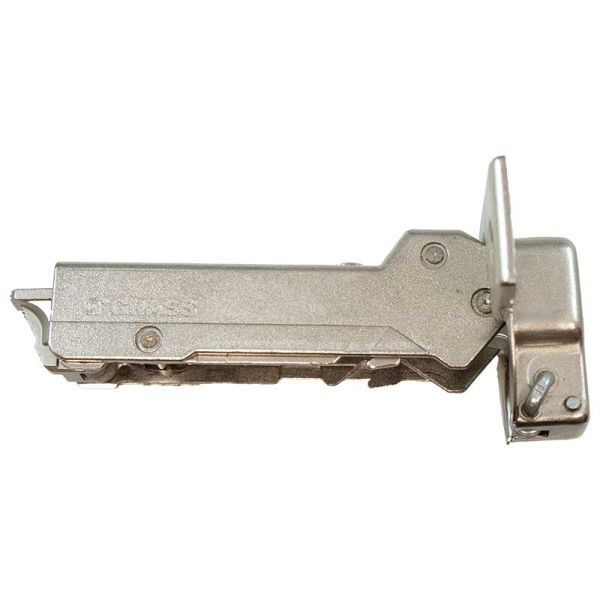

Grass Tiomos 110-Deg. Half-Overlay Self-Close Hinge - Cranking 9.5
Grass® Tiomos® 110-Deg. Hinge
Tiomos is a completely new hinge concept. Perfect alignment with a twist of the hand.
The Tiomos offers two closing actions: the standard Self-close and the popular Soft-close.
- 3-dimensional adjustment with suitable base plate
- Uniform closing action regardless of the door size, weight, or materials with 3 settings.
- Optimal reveal up to 24 mm door thickness
The kinematics inside Tiomos
The complex inner workings of this high-tech hinge are hidden from view, but they are most impressive when working as one. With the new kinematics in place the doors are extremely easy to open. This mechanism makes alignment with the smallest of gaps and reveals possible opening up new possibilities to cabinet designers.
Perfect alignment with a twist of the hand.
For fine adjustment, the Tiomos hinge system offers three dimensional adjustment. Depth adjustment (+3/–2mm) is based on the worm gear principle and is continuous and self-locking. Depending on the type of base plate chosen, height adjustment (± 2mm) can be achieved via a worm gear or through elongated holes (± 2.5mm). Side adjustment (± 2mm) is on the hinge arm.
| BRAND | Grass |
|---|---|
| Hardware Line | Tiomos Hinges |
| HINGE OPEN ANGLE | 110 DEG |
| Closure Type | Self Close |
| OVERLAY | Half |
| SKU | GA-110H-SELF |
| SPECS: |
|
| Prop 65 |
