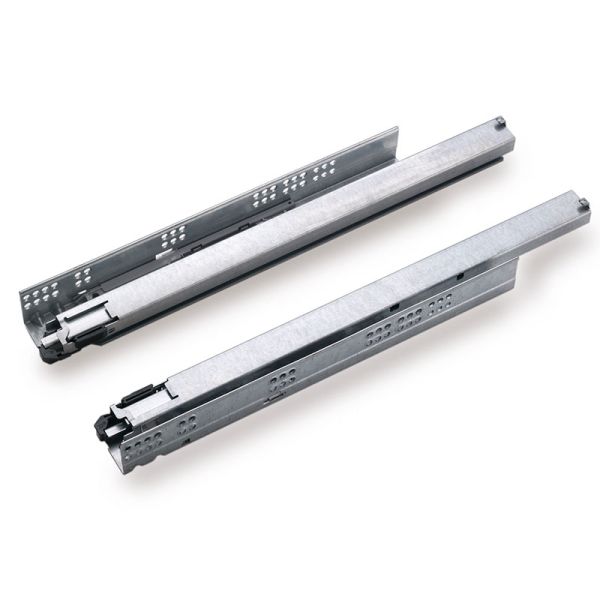

Grass Dynapro 27 in. Full-Extension, Soft-Close, Under Mount Slides - 1-Pair

Grass Dynapro 27-inch Full-Extension, Soft-Close, Under-Mount Slides - 1-Pair

These full-extension slides seem to float on air!

Three-Dimensional Adjustment with complete Under Mount Slide system (drawer locks and tilt adjustment adapters sold separately)

• Front Drawer Locks provide tool-less drawer front adjustment (side-to-side and verticle)
• Back-of-Drawer Tilt Adjustment Adapter provides vertical tilt adjustment.

FEATURES:

• Face frame or frameless applications from 12.7mm (1/2 in.)
  up to 16mm (5/8 in.) drawer material (See Face Frame Installation Note)
• Full extension drawer opening with a synchronized mechanism which makes motion smooth even if pushed at one end of a wide drawer
• Soft-close liquid damping movement
• Tool-less Three-Dimensional Drawer Adjustment


• Height adjustment 3.5mm
• Side adjustment 1.5mm
• Tilt adjustment 4.0mm


• 110 lb. capacity when drawer is extended
• Under-mount slides make drawers appear to glide on air.
• Hydraulic actuator gently pulls the drawer closed
• Easy drawer removal and installation


• To remove the drawer, squeeze the green levers and lift.
• To install the drawer, slide the drawer onto the slides and close the drawer. Snap, it's in place.

Designed for drawer material from 12.7 mm (1/2 in.) to 16 mm (5/8 in.).

Face-Frame Installation Notes

• Because of length and weight rating, blocking must be used when installing in face frame cabinets. These slides are not designed to be attached to the rear of the cabinet with rear L-shaped brackets. They must be attached securely to the cabinet sides (faceless-frame cabinets) or to side wall blocking (face-frame cabinets)

Related Parts - These must be used with the following parts: (sold separately)

• 1 Pair of Drawer Locks
• 1 Pair of Rear-Tilt Adjustment Mechanisms
