Grass 110 Deg., Face Frame, Soft Close, 3/8 Overlay - Single Door Kit
In stock
Grass 110 Deg., Face Frame, Soft Close, 3/8 in. Overlay - Single Door Kit
Face Frame (Western Style)
- Framed cabinets are the most common type of cabinet construction in the United States.
- They are called framed cabinets because of the 1-1/2 in. lip, or face frame, around the front of the cabinet box. The doors are attached to the face frame rather than directly to the cabinet box.

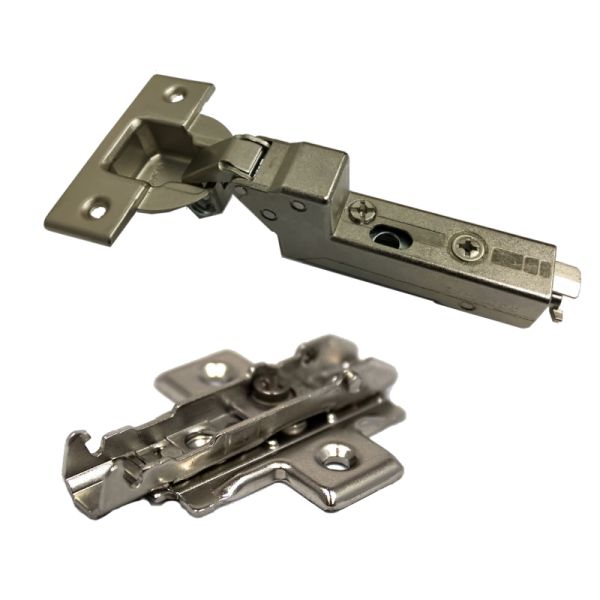

Tiomos: Innovative Hinge Technology
Tiomos is an innovative hinge concept designed to deliver precise door alignment and smooth, effortless operation. Its advanced mechanism makes fine adjustments easy while maintaining consistent performance and clean cabinet lines.
Kinematics Built Into Tiomos Hinges
- The complex inner workings of this high-tech hinge are hidden from view, but they deliver impressive performance when working together. Advanced kinematics make cabinet doors extremely easy to open and help achieve precise alignment with minimal gaps, creating new possibilities for cabinet design.
- For fine adjustment, the Tiomos hinge system offers three-dimensional adjustment:
- Depth adjustment (+3/-2 mm): A continuous, self-locking adjustment powered by the worm gear built into the hinge.
- Side adjustment (±2 mm): Adjustments are made directly on the hinge arm for precise door positioning.
- Height adjustment (±2 mm): The mounting plate included in this kit allows for height adjustment using a built-in worm gear.
Achieved Overlay Based on Common Cup-Hole Distance
- Door overlay is determined by a combination of three factors: the cup-hole distance, the type of hinge, and the height of the mounting plate.
- This kit is based on a cup-hole distance of 4 to 6 mm (5/32 in. to 15/64 in.). If your cup-hole distance falls outside this range, please contact McFeely's Technical Support for assistance selecting the correct hinge and mounting plate combination.
Door Thickness
- This kit is designed for cabinet doors up to 24 mm (approximately 15/16 in.) thick. If your doors are thicker, please contact McFeely's Technical Support for help selecting the appropriate hinge components.
Footnotes
For most cabinet doors, a combination of one soft-close hinge and one self-close hinge provides an optimal closing rate. Heavier doors should use two soft-close hinges.
Cup-Hole Distance: The distance measured from the edge of the cabinet door to the closest edge of the hinge cup hole.
| Hardware Line | Tiomos Hinges |
|---|---|
| OVERLAY | 3/8 in. |
| Closure Type | Soft Close |
| HINGE OPEN ANGLE | 110 DEG |
| BRAND | Grass |
| SKU | GA-KIT-FF-SC06 |
