Grass 110 Deg., Frameless, Self-Close, Inset 2mm Reveal - Single Door Kit

Grass 110° Frameless Self-Close Inset 2mm Reveal Single Door Kit

Frameless (Euro-Style) Cabinet Application

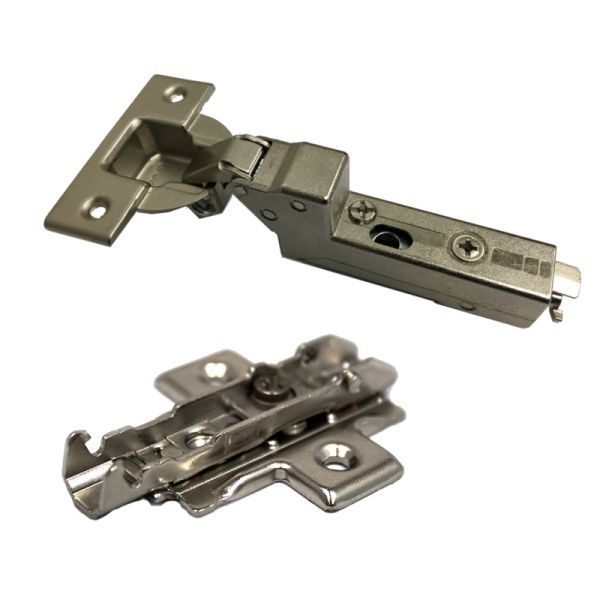

The Grass® Tiomos® 110° Frameless Self-Close Inset 2mm Reveal Single Door Kit is designed for full-access, European-style cabinets without a face frame. This hinge and mounting plate combination provides smooth cabinet door operation, precise positioning, and the adjustment range needed to achieve clean, consistent door alignment.

• Designed for frameless, full-access cabinets where the door mounts directly to the cabinet box.
• Inset installation positions the cabinet door approximately 2mm inside the front edge of the cabinet box.
• Frameless construction eliminates the face frame, providing greater access to the cabinet interior.
• Frameless cabinets can accommodate wider doors and drawers while maximizing usable cabinet space.
• Full-access frameless cabinetry can provide approximately 15% more usable storage space than traditional framed cabinets.

Grass Tiomos Hinge System

The Grass Tiomos hinge system combines advanced hinge kinematics with precise adjustment capabilities to provide smooth, controlled cabinet door movement. The engineered mechanism is concealed within the hinge body for a clean appearance while allowing the door to open easily and align accurately.

Tiomos hinges are designed to make cabinet door installation and adjustment easier, helping installers achieve consistent reveals and properly aligned doors. The integrated adjustment system provides precise control over door position without compromising the clean appearance of the finished cabinet.

Advanced Tiomos Kinematics

• Complex hinge mechanics are concealed within the hinge body for a clean, streamlined appearance.
• Advanced kinematics help provide smooth, effortless cabinet door opening.
• Engineered movement helps maintain precise door alignment and consistent gaps.
• The hinge provides three-dimensional adjustment for accurate cabinet door positioning.

Three-Dimensional Adjustment

The Grass Tiomos hinge system provides independent adjustment in three directions, making it easier to fine-tune cabinet door position during installation or after the cabinet has been put into service.

• Depth Adjustment: +3/-2mm continuous adjustment is controlled by a built-in worm gear. The adjustment is self-locking to help maintain the selected position.
• Side Adjustment: ±2mm lateral adjustment is made directly on the hinge arm for precise door-to-door and door-to-cabinet alignment.
• Height Adjustment: ±2mm vertical adjustment is provided through the included mounting plate using an integrated worm gear.

Inset 2mm Reveal

This single door kit is configured for an inset application with an approximately 2mm reveal between the cabinet door and cabinet box. The hinge and mounting plate combination is selected to provide the intended inset door position when installed using the specified cup-hole distance.

Cup-Hole Distance and Door Position

Proper cabinet door positioning depends on the relationship between the hinge cup-hole distance, hinge configuration, and mounting plate height. This kit is designed around a cup-hole distance of 4–6mm (5/32–15/64 in.).

• Cup-Hole Distance: 4–6mm (5/32–15/64 in.).
• The cup-hole distance is measured from the edge of the cabinet door to the closest edge of the hinge cup hole.
• If your cup-hole distance falls outside the specified range, contact McFeely's Technical Support for assistance selecting the correct hinge and mounting plate combination.

110-Degree Opening Angle

The 110° opening angle provides a practical range of cabinet door movement for kitchens, bathrooms, furniture, and other frameless cabinet applications. The hinge is designed to provide smooth movement while maintaining precise control throughout the opening and closing cycle.

Self-Close Function

The Grass Tiomos self-close hinge provides dependable closing action for everyday cabinet use. The self-closing mechanism helps draw the door toward the closed position, providing controlled and consistent operation.

For most cabinet doors, a combination of one soft-close hinge and one self-close hinge can provide an effective closing rate. Heavier cabinet doors should use two soft-close hinges for increased closing control.

Door Thickness

This kit is designed for cabinet doors up to 24mm thick, or approximately 15/16 in. If your cabinet door exceeds 24mm in thickness, contact McFeely's Technical Support for assistance selecting the appropriate Grass Tiomos hinge components.

Single Door Kit

This is a single-door hinge kit intended for one cabinet door. The hinge and mounting plate are matched for the specified frameless inset application, helping simplify component selection and installation.

Key Features

• Grass Tiomos 110° cabinet hinge system
• Designed for frameless, Euro-style cabinets
• Self-closing hinge action
• 2mm inset reveal application
• 110° opening angle
• Advanced Tiomos kinematics for smooth cabinet door movement
• Three-dimensional door adjustment
• +3/-2mm continuous, self-locking depth adjustment
• ±2mm side adjustment
• ±2mm height adjustment through the mounting plate
• Designed around a 4–6mm cup-hole distance
• Compatible with cabinet doors up to 24mm (approximately 15/16 in.) thick

Installation Considerations

For proper operation and the intended 2mm inset reveal, verify the cabinet door thickness, hinge cup-hole distance, and mounting plate position before installation. Accurate drilling and mounting are important for achieving the specified door position and maintaining consistent reveals.

Closing Configuration

For typical cabinet doors, combining one Grass Tiomos soft-close hinge with one self-close hinge can provide a balanced closing rate. For heavier doors, two soft-close hinges are recommended for improved control.
