Freud Rabbeting Bit w Bearing Set-1/2 in. Shank

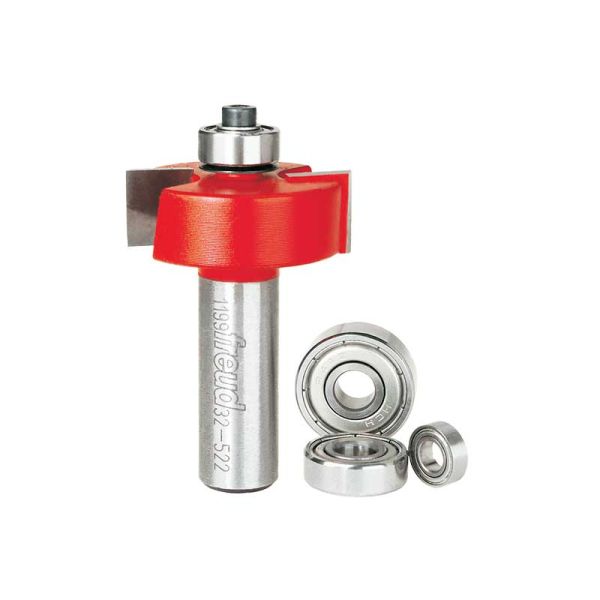

Freud 1/2 in. Rabbeting Bit with Bearing Set

The Freud Rabbeting Bit with Bearing Set is a versatile woodworking router bit designed for creating clean, accurate rabbets at multiple depths. It is ideal for joining boards, letting in back panels, trimming edges, and performing other woodworking applications where a precise shoulder and consistent depth of cut are essential.

The set includes interchangeable bearings that allow you to quickly adjust the cutting depth without replacing the router bit. With 5/16 in., 3/8 in., 7/16 in., and 1/2 in. rabbeting depths available, this bit provides the flexibility needed for a wide range of joinery and edge-detailing applications.

Designed to deliver smooth, clean cuts on both surfaces of the rabbet, the Freud rabbeting bit helps produce professional-quality results while reducing the need for extensive sanding or additional cleanup. The interchangeable bearing system provides a fast and convenient way to change the rabbet size to match the requirements of your project.

Versatile Rabbeting Performance

Freud Rabbeting Sets make a versatile rabbeting bit even more useful in the woodworking shop by offering multiple depths of cut from a single setup. Select the appropriate bearing to achieve the desired rabbet size. This makes the set especially useful when working on projects that require different rabbet dimensions or when matching an existing profile.

• Creates 5/16 in., 3/8 in., 7/16 in., and 1/2 in. depth rabbets.
• Interchangeable bearings provide quick and convenient depth adjustment.
• 1-3/8 in. overall diameter provides a stable cutting profile.
• GR32-526 can also be used as a flush-cutting trim bit.
• Produces smooth cuts on both surfaces of the rabbet.
• Includes a wrench for convenient bearing changes and setup.
• Cuts composite materials, plywoods, hardwoods, and softwoods.
• Suitable for hand-held and table-mounted portable routers.

Ideal for Joinery and Back Panel Applications

This rabbeting bit is well suited for creating recessed areas for back panels, cabinet components, and other woodworking joints. Its adjustable cutting depths make it useful when fitting boards and panels that require different rabbet dimensions. The bearing-guided design helps maintain consistent cuts along the edge of the workpiece.

Product Specifications

• Overall Diameter: 1-3/8 in.
• Carbide Height: 1/2 in.
• Shank Diameter: 1/2 in.
• Overall Length: 2-1/4 in.
• Rabbeting Depths: 5/16 in., 3/8 in., 7/16 in., and 1/2 in.
• Bearing System: Interchangeable bearings

Built for Woodworking Versatility

Whether you are producing cabinet joinery, installing back panels, fitting boards, or trimming an edge, the Freud Rabbeting Bit with Bearing Set provides the versatility to handle multiple applications with one router bit. The
