Freud 8 inch Dial- A-Width Dado Set

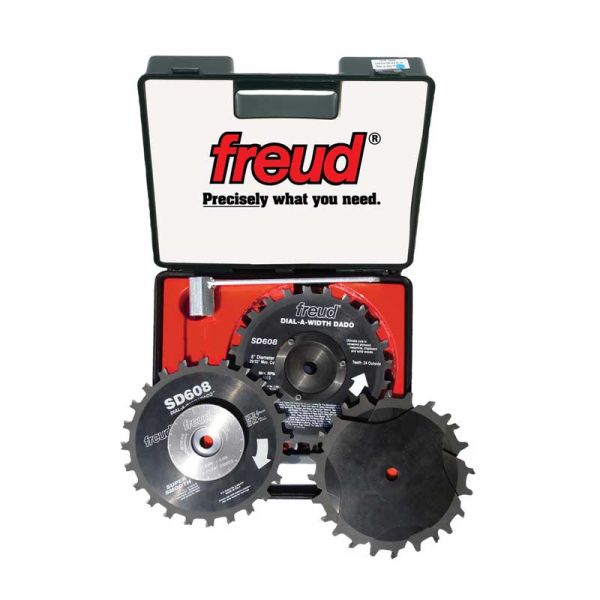

Freud Dial-A-Width Stacked Dado Set - 8 in. x 24 Teeth, 5/8 in. Arbor

The Freud Dial-A-Width Stacked Dado Set makes creating precise, paper-tight dado joints easier without the need for traditional shims. Its patented Dial-A-Width technology uses specially designed hubs on the outside cutters that can be stacked together or combined with the included chippers to provide continuous dado-width adjustment from 1/4 in. to 29/32 in.. Built-in detents provide precise 0.004 in. fixed increments, allowing you to quickly fine-tune a cut and return to a previously used width.

Designed for versatility, the Dial-A-Width dado set can be configured for use on both right-tilt and left-tilt table saws. The factory-supplied right-tilt arbor configuration can be easily converted when needed. This makes the set a practical choice for woodworkers who demand accurate, repeatable dado cuts across a variety of projects and materials.

Precision Cutting for Veneered Materials

Each carbide-tipped outside blade features 12 scoring teeth and 12 flat-top ground teeth. The teeth are positioned with a -12-degree hook angle to provide controlled cutting performance, particularly when working with veneered products. The included chippers feature flat-top ground teeth with the same negative hook geometry for clean, consistent dado cuts.

Included Chippers

• Four 1/8 in. chippers, each with four flat-top ground teeth
• One 3/32 in. chipper, with four flat-top ground teeth
• All chippers feature a -12-degree hook angle

Dial-A-Width Adjustment

The unique hub system eliminates the inconvenience of sorting and installing individual shims. By changing the combination of outside cutters and chippers, users can dial in the desired dado width with fine adjustment capability. The integrated detents provide repeatable 0.004 in. increments, helping maintain consistent results from one setup to the next.

Arbor Clearance and Special Wrench

When configured for its widest cut, the dado set uses approximately 1-1/8 in. of arbor shaft, not including the space required for the arbor nut. A special arbor nut wrench is included to make it easier to reach into the dado hub during installation and setup.

Product Specifications

• Brand: Freud
• Model: SD608
• Set Type: Dial-A-Width Stacked Dado Set
• Diameter: 8 in.
• Arbor: 5/8 in.
• Width Range: 1/4 in. to 29/32 in.
• Widest Cut: Approximately 1-1/8 in.
• Outside Blade Teeth: 24 each, including 12 scoring and 12 flat-top teeth
• Chipper Teeth: Four teeth per chipper
• Hook Angle: -12 degrees
• Plate: N/A
• Saw Compatibility: Right-tilt and left-tilt table saws
• Included Accessory: Special arbor nut wrench

The Freud SD608 Dial-A-Width Stacked Dado Set combines precise width adjustment, repeatable settings, and carbide-tipped cutting performance in one versatile dado system. It is an excellent choice for woodworkers looking for clean, accurate dadoes and consistent joint fit without relying on conventional shims.
