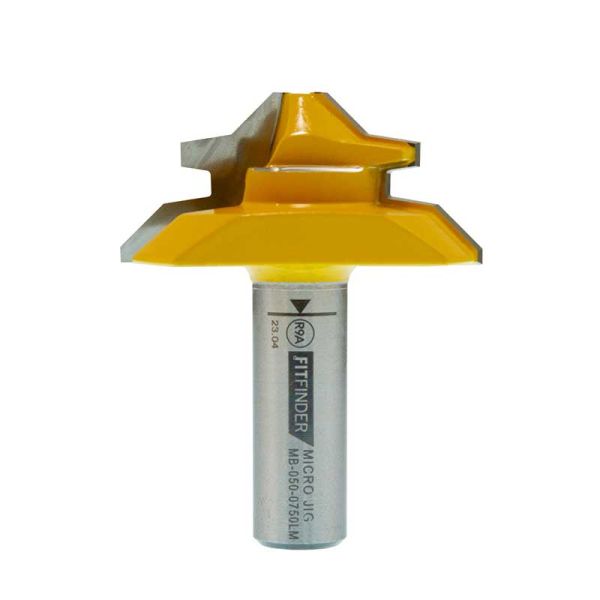

FITFINDER Lock Miter Bit - 1/2 in. Shank
For Use with Router, Router Table, MATCHFIT Dovetail Clamps
FitFinder Lock Miter Bit Microjig Automatic Measurements
Take the guesswork out of setting up lock miter joints with our patent-pending Center Finding Shelf!
The lock miter joint can't be beat for making columns, newels, posts, and cabinet scribes, but the bit and stock have to be exactly centered together. Only Microjig's Lock Miter Bit features the Center Finding Platform milled into the bit body at the precise center of the cutting profile. A solid measuring point to set the correct bit height the first time.
Once the height is correct, only the fence needs to be adjusted to perfect the fit. This greatly simplifies the router table setup for perfect joints with minimal test cuts and wasted stock. Now you can confidently add this important joinery to any of your projects.
The FITFINDER 1/2 Gauge allows you to find the 1/2 thickness of any material up to 3 in. thick. Create perfectly fitting joints with zero guesswork, set fences and transfer cutting depths instantlyâ€- all with no math or measuring. Works perfectly with the FITFINDER Lock Miter Bit.
- Patent pending Center Finding Platform sets the correct bit height first time and every time.
- With the height correct, only the fence needs to be adjusted for the perfect joint.
- Designed to work with our FN12 FitFinder but will work with any height gauge.
- Exclusive Glue Wells allow for tighter, easier-to-clamp joints by providing room for excess glue.
- Works with stock from 1/2 in. (13mm) through 3/4 in. (19mm) thick.
| Product Group | Router Bits |
|---|---|
| BRAND | MICROJIG |
| SHANK SIZE | 1/2 in. |
| GUIDE POSITION | None |
| QUANTITY | (1) Each |
| SKU | MJ-0750LM |
| Prop 65 |
WARNING: This product can expose you to chemicals including Styrene, which is know to the Sate of California to cause cancer. For more information, visit www.P65Warnings.ca.gov.
|
WARNING: This product can expose you to chemicals including Styrene, which is know to the Sate of California to cause cancer. For more information, visit www.P65Warnings.ca.gov.
WARNING: While working in a hazardous area where you can be exposed to flying objects, fragments, and particles, primary protective devices such as safety glasses or goggles with side shields must be worn. Secondary protective devices such as a face shield is required in conjunction with primary protective devices during severe exposure to impact hazards.
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
