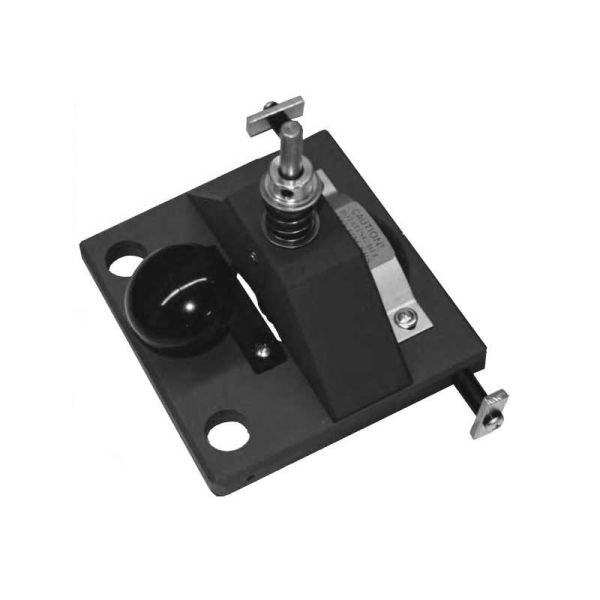

Euro Ltd. - 35mm Concealed Hinge Boring Tool
Euro Ltd. - 35mm Concealed Hinge Boring Tool
The model 50-U is both usable on a drill press for shop use or on a standard 3/8 in. electric drill motor for hand held applications.
The tool can be mounted on a drill press and removed at any time for field situations and then easily reinstalled on the drill press.
The tool features automatic boring depth stop, a non-skid base to protect a work piece, centerline positioning for additional hinge boring, and can drill for leg leveler systems.
The tool can use 20mm, 35mm, and 40mm x 57mm bits not included, and is designed for custom size cabinetry as well as for use with the 32mm system making it usable on all brands of hardware.
Specifications
- Base and Bridge: Machined P.V.C.
- Bearings: Bronze
- Shaft: Machined Steel
- Fence: Aluminum
- Collars: Machined Steel
- Handles: Plastic
- Finish: None
- Color: Grey
- Size: .75"W x 5"D x 6.5"H - assembled
| BRAND | Euro Ltd |
|---|---|
| QUANTITY | (1) Each |
| SKU | EU-3213 |
| SPECS: | |
| Prop 65 |
|
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
