Eazypower 6-Piece Hinge-Centering Drill Bit Set

EazyPower® Hinge-Centering Drill Bit Set

Drill Dead-Center Pilot Holes for Accurate Hinge Installation

The EazyPower® Hinge-Centering Drill Bit Set makes hinge installation faster, easier, and more accurate by automatically centering the drill bit within the hinge mounting hole. The self-centering sleeve and beveled alignment tip fit securely into the countersunk hole of a hinge or other hardware, positioning the drill precisely at the center of the mounting hole.

Once properly seated, the hinge-centering guide helps prevent the drill bit from wandering or shifting, allowing you to create accurately positioned pilot holes for mounting screws. This is especially useful when installing cabinet hinges, door hinges, hardware, and other applications where precise screw placement is important.

FEATURES:

• Self-Centering Bit Sleeve: Keeps the drill bit precisely centered within the hinge mounting hole for accurate pilot-hole placement.
• Beveled Self-Aligning Tip: Fits into the countersunk hole of a hinge or other hardware. Once seated, the drill is positioned to create a dead-center pilot hole.
• Accurate Hinge Installation: Helps reduce drill-bit wandering and improves the consistency of screw-hole placement.
• 1/4 in. Hex Shank: Designed for use with compatible drills and quick-change chuck systems.
• Interchangeable Drill Bits: Replacement drill bits that fit the centering sleeve are available separately, allowing individual bits to be replaced as needed.
• Multiple Screw Sizes: The set includes six drill sizes to accommodate common screw sizes from #6 through #16.

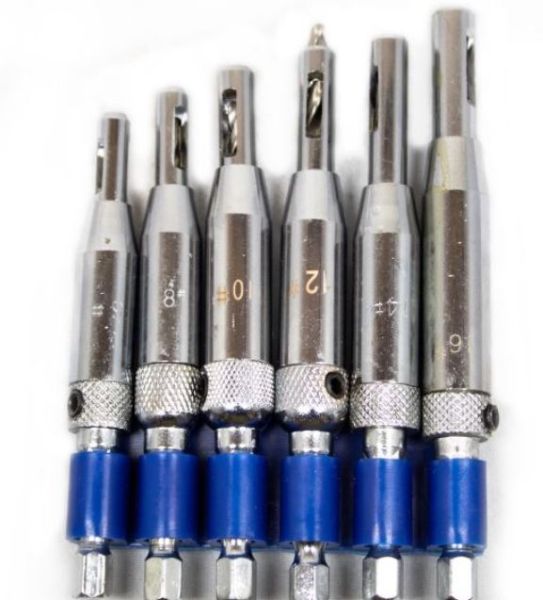

SET INCLUDES:

• (1) 3/32 in. Drill for #6 screws – EZP-0664
• (1) 7/64 in. Drill for #8 screws – EZP-0764
• (1) 1/8 in. Drill for #10 screws – EZP-0864
• (1) 9/64 in. Drill for #12 screws – EZP-0964
• (1) 5/32 in. Drill for #14 screws – EZP-1064
• (1) 3/16 in. Drill for #16 screws – EZP-1264

Guide to Selecting the Correct Hinge-Centering Bit

• Drill Size: 3/32 in.
• Application: #6 Screws
• Hinge Guide Outside Diameter: 15/64 in.
• Part Number: EZP-0664

• Drill Size: 7/64 in.
• Application: #8 Screws
• Hinge Guide Outside Diameter: 15/64 in.
• Part Number: EZP-0764

• Drill Size: 1/8 in.
• Application: #10 Screws
• Hinge Guide Outside Diameter: 17/64 in.
• Part Number: EZP-0864

• Drill Size: 5/32 in.
• Application: #12 Screws
• Hinge Guide Outside Diameter: 17/64 in.
• Part Number: EZP-1064

• Drill Size: 11/64 in.
• Application: #14 Screws
• Hinge Guide Outside Diameter: 17/64 in.
• Part Number: EZP-1164

• Drill Size: 3/16 in.
• Application: #16 Screws
• Hinge Guide Outside Diameter: 5/16 in.
• Part Number: EZP-1264

HOW IT WORKS:

The EazyPower® Hinge-Centering Drill Bit uses a precision self-centering sleeve to locate the exact center of a hinge mounting hole. The beveled tip seats into the countersink of the hardware, automatically aligning the drill bit before drilling begins.

1. Select the drill size appropriate for the screw being used.
2. Insert the drill bit into the hinge-centering sleeve.
3. Place the beveled tip into the countersunk mounting hole of the hinge or hardware.
4. Apply light, controlled pressure to keep the guide seated while drilling.
5. Drill the pilot hole through the hinge mounting hole and into the workpiece.
6. Remove the guide and install the mounting screw.

IDEAL FOR:

• Cabinet hinge installation
• Door hinge installation
• Furniture hardware installation
• Cabinetmaking and woodworking
• Installing hinges and mounting hardware
• Creating accurately positioned pilot holes
• Professional shops and DIY woodworking projects

Accurate pilot holes start with accurate alignment. The EazyPower® Hinge-Centering Drill Bit Set provides a convenient selection of common drill sizes while the self-centering guide helps ensure each pilot hole is positioned precisely where it belongs.
