Easy Wood 4 in. Easy Chuck - Fits Lathes with 1 in. x 8 TPI Spindle

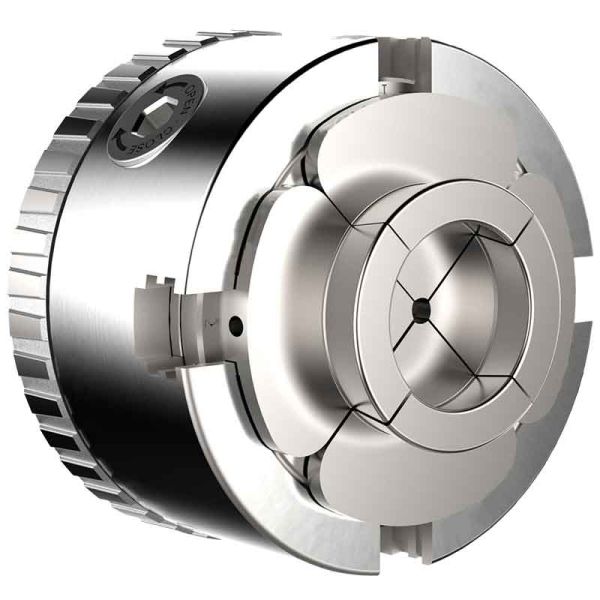

Easy Wood® 4-in. Easy Chuck – 1-in. x 8 TPI Spindle

The Easy Wood® 4-in. Easy Chuck™ is a versatile woodturning chuck designed to simplify project setup while providing a secure hold for a wide range of workpieces. Featuring a compact 4-inch diameter body and interchangeable jaw sets, the Easy Chuck replaces the need for multiple chuck sizes in many woodturning setups. Jaw changes are fast and tool-friendly, allowing you to adapt the chuck to different project requirements in seconds.

This model is designed to fit wood lathes with a 1-in. x 8 TPI spindle. Always verify your lathe spindle specifications in the manufacturer's owner's manual before purchasing.

Fast, Tool-Friendly Jaw Changes

Easy Wood's snap-lock jaw technology allows compatible chuck jaws to lock securely into the chuck without requiring screws or wrenches. This makes changing jaw configurations quick and convenient, with installation taking approximately 30 seconds. The interchangeable jaw system gives woodturners the flexibility to configure the chuck for different sizes and styles of turning projects.

Quick Jaw Adjustment with the Zoom Ring

The integrated Zoom Ring makes initial jaw adjustment fast and easy. Turn the ring by hand to quickly bring the jaws into contact with your workpiece, then use the included chuck key to apply the final tightening force. This two-step adjustment process helps streamline workholding and project setup.

Secure Dovetail Jaw Design

The Easy Chuck jaws feature a dovetail profile designed to provide a secure grip on properly prepared workpieces. The jaws can be operated in either compression or expansion mode, allowing the chuck to hold projects from the outside or expand inside a prepared recess.

Compression and Expansion Holding

The interchangeable jaws can be used to grip workpieces using either inward compression force or outward expansion force. Choose the appropriate gripping method based on the project, workpiece design, and prepared mounting surface.

Important: A workpiece can generally withstand significantly greater inward compression force than outward expansion force. The amount of outward force that can safely be applied depends greatly on the type of wood and the thickness of the material surrounding the jaws. Always use appropriate speeds, mounting techniques, and safety practices when operating a wood lathe.

Compact 4-Inch Woodturning Chuck

The 4-inch Easy Chuck provides a practical balance of size and versatility for woodturning applications. Its interchangeable jaw system lets you configure one chuck for a variety of projects, helping reduce the need for multiple chuck bodies while keeping jaw changes simple and efficient.

Designed for Woodturning Versatility

Whether you're turning bowls, vessels, spindles, or other woodturning projects, the Easy Wood 4-in. Easy Chuck provides a convenient workholding solution. The combination of snap-lock jaws, a hand-adjustable Zoom Ring, dovetail jaw design, and compression or expansion gripping makes it a flexible addition to a woodturning lathe setup.

What's Included

• 1-3/8-inch Easy Dovetail Jaws
• Easy Chucking Screw
• Chuck Key with 5/16-inch Hex T-Handle
• Jaw Key with 1/8-inch Hex Ball Driver
• Spindle Washer
• Spare Hub Set Screws
• Spare Master Jaw Springs
• Owner's Manual

Spindle Compatibility

This Easy Chuck model fits lathes equipped with a 1-inch x 8 TPI spindle. Easy Wood offers the Easy Chuck in multiple spindle sizes to accommodate different woodturning lathes. Check your lathe owner's manual to confirm the correct spindle size before ordering.
