DustRouter

Dust Collection Hose and Adapter

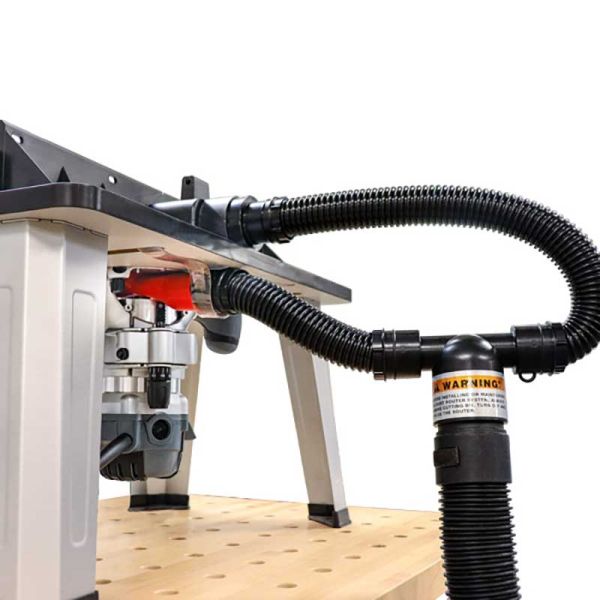

Breathe easy with the Milescraft™ DustRouter™. Connect the DustRouter™ to your router table and cut dust by over 90%. The DustRouter™ can be mounted directly to your router table or insert plate, making it easy to adjust or change your tools. The dual tube design allows dust collection from both below and through the fence. Nearly eliminate dust while edge trimming, cutting grooves, slots, dadoes, dovetails, and more.

Dual Dust Collection

• Use with or without the router table fence
• Connect hoses from the dust port and dust cup with the vacuum source

Universal Fit

• Easy to attach to most router tables for permanent or temporary use
• Hook and loop circle pads mount directly to your router table or insert plate
• Standard hose size 1-1/2 in. (38mm) diameter, attaches to workshop vacuums and dust collectors
• Flexible silicone dust cup with hook and loop fastening system fits most routers and lifts
• Dust cup can be cut open along the scissor line for easy exchange of router bits

• Dust Cup:Outside Diameter: 3-3/8 in. (35mm)
  Inside Diameter: 2-1/2 in. (64mm)
• Cup Connector: Outside Diameter: 1-3/8 in. (35mm)
• Short Dust Tube: Length 20 in. (508mm), Diameter 1-1/2 in. (38mm)
• Long Dust Tube: Length 35 in. (889mm), Diameter 1-1/2 in. (38mm)
• Fence Connector: Outside Diameter: 2-1/4 in. (57mm)
• T-Connector Vacuum Connection: Inside Diameter: 2-1/4 in. (57mm)
• Hook and Loop Circle Pad:
  Outside Diameter: 3-3/8 in. (35mm)
  Inside Diameter: 2-1/2 in. (64mm)
• Largest Bit Possible: 2-1/4 in. (57mm) Diameter

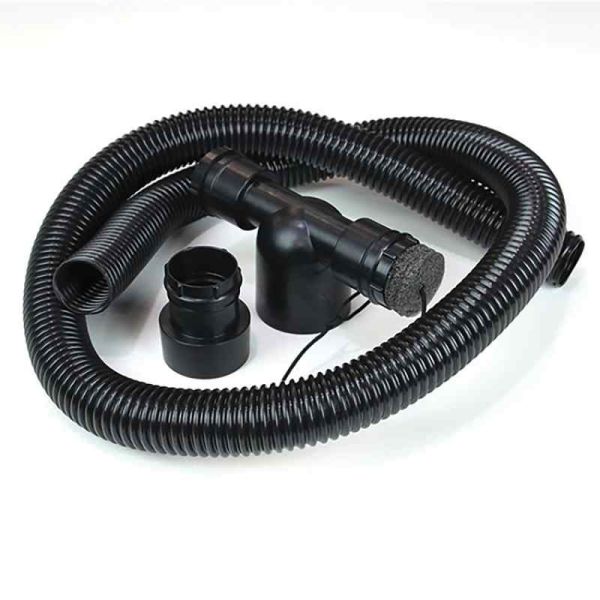

Includes:

• Dust Cup™
• 20 in. Dust Tube
• 35 in. Dust Tube
• Fence Connector
• T-Connector w/Plug
• Cup Connector
• Vinyl Strap
• Hook and Loop Circle Pad (3)
• Mounting Screws
• Manual
