CMT Standard Rail and Style Bit Set - 1/2 in. Shank

SKU: RS5-9260

Be the first to review this product

Quick Overview

CMT Standard Rail and Style Bit Set - 1/2 in. Shank
$121.87
CMT Standard Rail and Style Bit Set - 1/2 in. Shank is available for purchase in increments of 1

Details

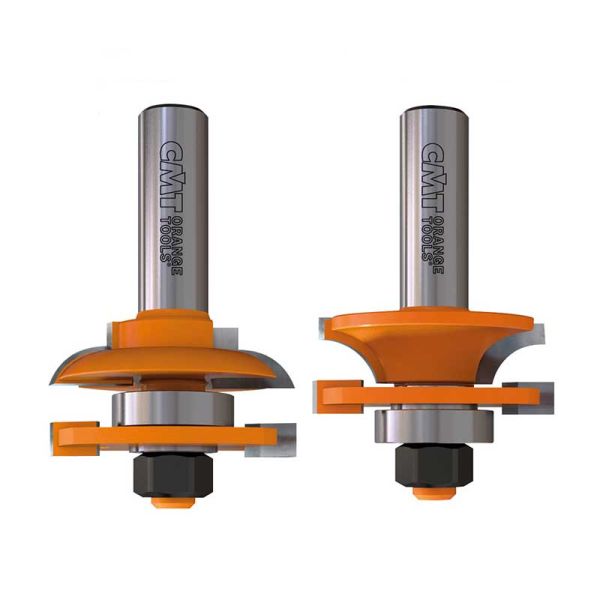

CMT Standard Rail and Style Bit Set – 1/2 in. Shank

A well–constructed door must include a perfect rail and style joint – clean, precise and well–crafted for strength. CMT’s Rail and Stile Sets are the ideal choice for the job, with perfectly matched profiles, not the approximate match found on some reversible cutters. These bits rout joints in soft/hard woods from 11/16" to 7/8" thick.

Note: The CMT Rail & Stile set was designed primarily for the construction of panel doors with 3/4" thick rails and stiles, but stock up to 7/8" thick can be used. Remember to adjust your measurements and cutting depths according to the wood thickness you use.



Bit D L S A
RS5-9260 1–3/4" 23/32" – 7/8" 2–51/64" 1/2" N/A



Safety tips: Always wear a dust mask and eye protection when routing.

Safety precautions: never use damaged or worn bits. Always work at the recommended proper feed rate without forcing the bit. Pay particular attention when making the initial cut with a small diameter bit. For best results when working with small diameter bits, make the cut in more than one pass.

How CMT produces high quality router bits

  • Turning, Milling and Cutting CMTs biggest investment in recent years has been in upgrading production. Today, all machinery at CMT is fully automated. CNC machines run by specially trained operators ensuring the shanks and bodies of our router bits and boring bits are accurate and perfectly balanced.
  • Heat forged steel bodies for large diameter bits No router bits are exactly the same, not even in the way they are made. Certain bits require a few more steps than others, like heat forging the steel of larger diameter bits before turning it into precise bit bodies. This extra step produces a radial grain orientation which offers large diameter bits extra strength and durability.
  • Brazing We have pioneered the art of brazing. Not only does our unique custom–designed computerized brazing equipment help eliminate the inconsistencies found in old fashioned hand brazing, but our silver–copper–silver brazing ‘sandwich’ provides a tight bond between the steel and the carbide, with a shock absorbing effect to protect the carbide tips when cutting harder woods.
  • Specially formulated carbide for specific applications In woodworking, you have to cut every kind of material, so we make sure that our carbide tips can handle each individual job. This means specially formulating the carbide of each tool so that the compositions vary from being super hard (for tough cutting jobs like laminates) to being less hard (to absorb the impact when cutting large profiles) and everything in between.
  • Grinding and Sharpening The final step in the production process is no different from the rest: sharpening and grinding are done to extreme precision on multi–axis CNC machines. Each bevel and angle is ground or sharpened to the micron, to produce a cutting edge that is both razor sharp, yet extremely durable.

Additional Information

Product Group Bits Blades & Abrasives
Category Router Bits
Sub-Category Rail & Stile Shaping Bits
BRAND NAME CMT
OVERALL DIAMETER Assorted
CUTTER HEIGHT Assorted
NUMBER OF CUTTERS N/A
OVERALL LENGTH d No
OVERALL LENGTH Assorted
SHANK SIZE 1/2 in.
GUIDE POSITION None
Specifications 891.502.11
SKU RS5-9260
