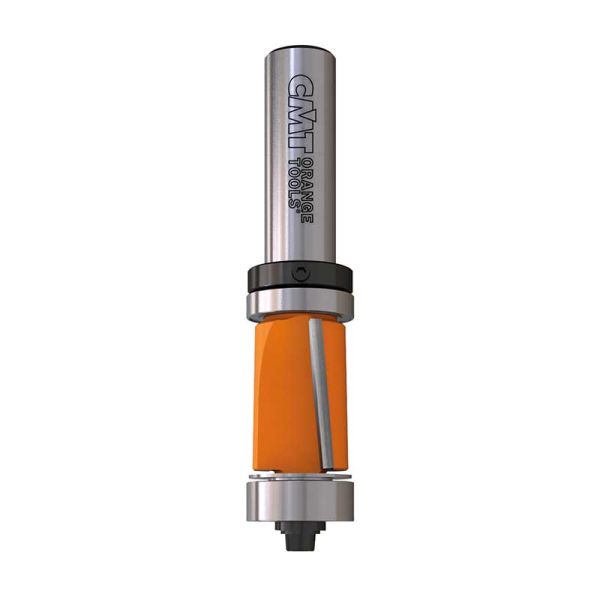

CMT Flush Trim Router Bits with Double Bearing - 1/2 in. Shank

CMT Flush Trim Router Bits with Double Bearing - 1/2 in. Shank

These new innovative two-flute router bits are equipped with a double bearing and feature a down shear design, which allows for clean smooth cuts on many materials.

Therefore it is no longer necessary to flip or move your tool if you need to ride it from either direction to the other side of your workpiece. You will benefit from this tool especially when routing curved elements along or against the grain.

nbsp;

Shop tips: these bits are excellent for making through mortise. Use a straight bit to groove the area to make the through mortise. With a drill bit bore a hole through the wood at one end of the groove. Turn the workpiece over to finish the mortise. Use a flush trim bit with a cutting length slightly longer than the fillet, following the groove made on the opposite side of the workpiece with the ball bearing guide.

Safety precautions: never use damaged or worn bits. Always work at the recommended proper feed rate without forcing the bit. Pay particular attention when making the initial cut with a small diameter bit. For best results when working with small diameter bits, make the cut in more than one pass.

How CMT produces high quality router bits

• Turning, Milling and Cutting CMTs biggest investment in recent years has been in upgrading production. Today, all machinery at CMT is fully automated. CNC machines run by specially trained operators ensuring the shanks and bodies of our router bits and boring bits are accurate and perfectly balanced.
• Heat forged steel bodies for large diameter bits No router bits are exactly the same, not even in the way they are made. Certain bits require a few more steps than others, like heat forging the steel of larger diameter bits before turning it into precise bit bodies. This extra step produces a radial grain orientation which offers large diameter bits extra strength and durability.
• Brazing We have pioneered the art of brazing. Not only does our unique customndash;designed computerized brazing equipment help eliminate the inconsistencies found in old fashioned hand brazing, but our silverndash;copperndash;silver brazing lsquo;sandwichrsquo; provides a tight bond between the steel and the carbide, with a shock absorbing effect to protect the carbide tips when cutting harder woods.
• Specially formulated carbide for specific applications In woodworking, you have to cut every kind of material, so we make sure that our carbide tips can handle each individual job. This means specially formulating the carbide of each tool so that the compositions vary from being super hard (for tough cutting jobs like laminates) to being less hard (to absorb the impact when cutting large profiles) and everything in between.
• Grinding and Sharpening The final step in the production process is no different from the rest: sharpening and grinding are done to extreme precision on multindash;axis CNC machines. Each bevel and angle is ground or sharpened to the micron, to produce a cutting edge that is both razor sharp, yet extremely durable.
