CMT Counterbore Screw Slot Router Bit for Washer/Pan-Head Screws
CMT® Counterbore Screw Slot Router Bit for Washer/Pan-Head Screws
Cut Slots to fit the profile of Washer-Head or Pan-Head Screws - Perfect for jig building or furniture construction.
Furniture Building Application:
Any large panel or table top should be secured in a way that allows it to expand or contract without splitting. These screw-slot bits let you create screw slots so that panels can be held in place but are able to slide back and forth without splitting the wood or breaking the screw securing them.
Jig Building Application:
When building jigs, these slots allow jig members to slide before tightening.

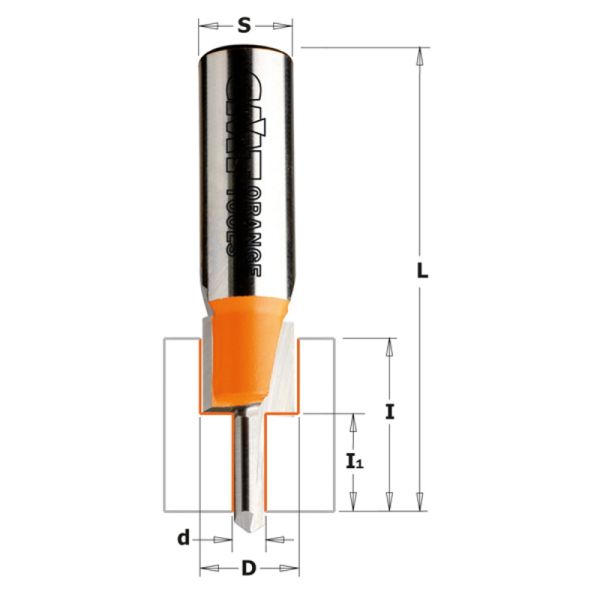

Specs (See product image with dimension labels):
- D (Overall Diameter) = 1/2 in.
- d (Screw Through-Hole Slot diameter) = 11/64 in. (for #8 screws)
- I (Total Routing Depth) = 15/16 in.
- I1 (Screw Through-Hole Depth) = 35/64 in.
- L (Overall Bit Length) = 2-1/2 in.
- S (Shank Diameter) = 1/2 in.
| Product Group | Router Bits |
|---|---|
| BRAND | CMT |
| SHANK SIZE | 1/2 in. |
| GUIDE POSITION | None |
| QUANTITY | (1) Each |
| Overall Length | 2-1/2 in. |
| OVERALL DIAMETER | 1/2 in. |
| CUTTER HEIGHT | 15/16 in. |
| SKU | SB5-8016 |
| SPECS: |
|
| Prop 65 |
|
WARNING: This product can expose you to chemicals including nickel and cobalt, which are known to the State of California to cause cancer and lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
