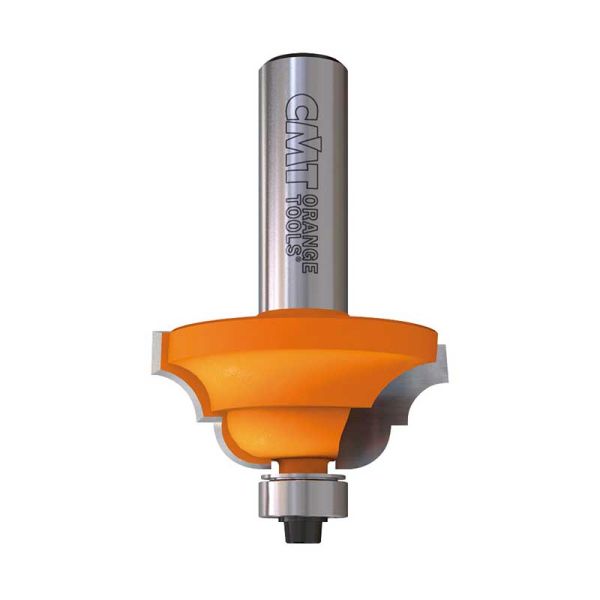

  • CMT 841.880.11 Classical Roman Ogee Bit - 1-11/16 in.  Dia. - 1/2 in. Shank CMT 841.880.11 Classical Roman Ogee Bit - 1-11/16 in.  Dia. - 1/2 in. Shank
  • 841-880-11 Mill Profile 841-880-11 Mill Profile
  • 841-880-11 Dimensions 841-880-11 Dimensions

CMT Classical Roman Ogee Bit - 1/4 in. Radius. - 1/2 in. Shank

SKU: RO-841-880-11

Be the first to review this product

Quick Overview

CMT Classical Roman Ogee Bit - 1/4 in. Radius. - 1/2 in. Shank

Details

CMT Classical Roman Ogee Bit - 3/4 in. Carbide Height - 1/2 in. Shank

Mating Symetry makes creating joining railes and styles for elegant wainscoting and other applications.

This bit takes the Roman ogee one step further, with a horizontal bead in the middle of the profile to add more interest to the shape. This bit is appropiate for many classical projects that need more detail on the edge.

To create wainscot walls:

  1. Set the bit dead center to the stock thickness.
  2. Route the interior edges of the rails and stiles.
  3. Flip the rails over and cope the edges with the bit in the same position on a router table.
  4. Attach one stile, attach the rails and then attach the last stile for a perfect fit.

BitDILSR
RO–7011 1–11/16" 3/4" N/A 1/2" 1/4"



Safety tips: Always wear a dust mask and eye protection when routing.

Shop tips: for best results, multiple passes are recommended.

Safety precautions: never use damaged or worn bits. Always work at the recommended proper feed rate without forcing the bit. Pay particular attention when making the initial cut with a small diameter bit. For best results when working with small diameter bits, make the cut in more than one pass.

How CMT produces high quality router bits

  • Turning, Milling and Cutting CMTs biggest investment in recent years has been in upgrading production. Today, all machinery at CMT is fully automated. CNC machines run by specially trained operators ensuring the shanks and bodies of our router bits and boring bits are accurate and perfectly balanced.
  • Heat forged steel bodies for large diameter bits No router bits are exactly the same, not even in the way they are made. Certain bits require a few more steps than others, like heat forging the steel of larger diameter bits before turning it into precise bit bodies. This extra step produces a radial grain orientation which offers large diameter bits extra strength and durability.
  • Brazing We have pioneered the art of brazing. Not only does our unique custom–designed computerized brazing equipment help eliminate the inconsistencies found in old fashioned hand brazing, but our silver–copper–silver brazing ‘sandwich’ provides a tight bond between the steel and the carbide, with a shock absorbing effect to protect the carbide tips when cutting harder woods.
  • Specially formulated carbide for specific applications In woodworking, you have to cut every kind of material, so we make sure that our carbide tips can handle each individual job. This means specially formulating the carbide of each tool so that the compositions vary from being super hard (for tough cutting jobs like laminates) to being less hard (to absorb the impact when cutting large profiles) and everything in between.
  • Grinding and Sharpening The final step in the production process is no different from the rest: sharpening and grinding are done to extreme precision on multi–axis CNC machines. Each bevel and angle is ground or sharpened to the micron, to produce a cutting edge that is both razor sharp, yet extremely durable.

Additional Information

Product Group Bits Blades & Abrasives
Category Router Bits
Sub-Category Ogee Bits
BRAND NAME CMT
OVERALL DIAMETER 1-11/16 in.
CUTTER HEIGHT 3/4 in.
OVERALL LENGTH d No
OVERALL LENGTH No
DEGREE No
SHANK SIZE 1/2 in.
GUIDE POSITION Bottom
Specifications No
SKU RO-841-880-11
