Blum Clip Top 170 Deg Partial Overlay Hinge (Without Blumotion)
For Face Frame or Frameless Cabinets

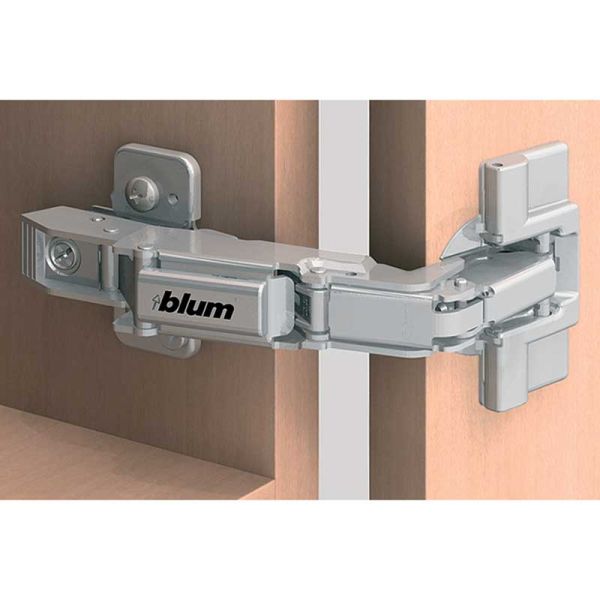

Blum Clip Top 170° Partial Overlay Hinge Without Blumotion
The Blum CLIP top 170° hinge is a concealed cabinet hinge designed to provide reliable operation, convenient installation, and a clean, unobtrusive appearance. This partial-overlay hinge is suitable for a variety of cabinet applications and can be used with both face frame and frameless cabinetry when paired with the appropriate mounting plate.
Designed for efficient cabinet assembly and adjustment, the CLIP top system allows doors to be attached and removed quickly without tools. The hinge simply snaps on and off the mounting plate, making installation, removal, and servicing easier. Three-dimensional adjustment and cam adjustment provide precise control over door positioning for a professional fit and consistent cabinet alignment.
Easy Clip-On Cabinet Hinge Installation
The tool-free clip-on design makes installing and removing cabinet doors fast and convenient. Once the compatible mounting plate is installed, the hinge can be securely attached or detached as needed without requiring additional tools. This makes the hinge especially useful for cabinet construction, replacement, and adjustment work.
Flexible Cabinet Applications
With a wide selection of compatible mounting plates available, Blum CLIP top hinges can accommodate many cabinet configurations. This model is designed for partial-overlay applications and can be used on face frame or frameless cabinets with the correct mounting hardware.
Adjustable for a Precise Fit
Three-dimensional adjustment allows the cabinet door to be fine-tuned after installation. Cam adjustment helps simplify positioning so you can achieve consistent door alignment and an even appearance across the cabinet installation.
Features
- 170° hinge design for a wide cabinet door opening
- Partial-overlay application
- Concealed hinge design for a clean cabinet appearance
- Without Blumotion soft-close mechanism
- Suitable for face frame and frameless cabinet applications with the appropriate mounting plate
- Tool-free clip-on and clip-off door installation
- Three-dimensional adjustment for precise door positioning
- Cam adjustment for convenient alignment
- Straight-arm design
- Nickel-plated finish for durability and a clean appearance
- Self-closing action
- Made in the USA
Blum Part Number
BP173H7130 – Blum Clip Top 170° Partial Overlay Hinge Without Blumotion
Important: This is an EOL (End of Life) product. Availability may be limited and mounting plates are sold separately unless otherwise specified.
| BRAND | Blum |
|---|---|
| Hardware Line | Blumotion |
| HINGE OPEN ANGLE | 170 DEG |
| Closure Type | Self Close |
| OVERLAY | Partial |
| SKU | BL-03703563 |
