Blum Cam Adjustable Clip Mounting Plate for Frameless (3mm) - EOL

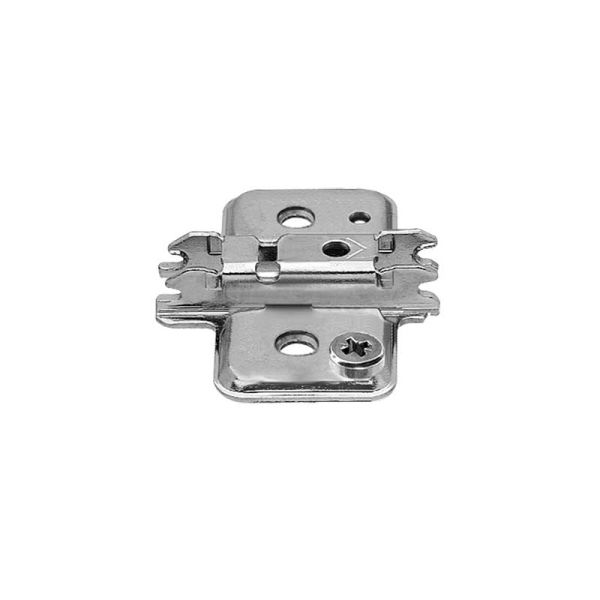

Blum Cam Adjustable Clip Mounting Plate for Frameless Cabinets (3mm)
The Blum Cam Adjustable Clip Mounting Plate is designed for frameless cabinet applications and provides reliable support and convenient height adjustment for compatible Blum concealed hinges. With a 3mm plate height and integrated cam adjustment, this nickel-plated steel mounting plate makes it easy to fine-tune cabinet door positioning after installation.
Adjustable Cabinet Hinge Mounting
Featuring a built-in cam adjustment, the mounting plate allows approximately ±2mm of height adjustment. This makes it easier to achieve consistent door alignment and precise reveals during cabinet installation or adjustment. The steel construction provides dependable support, while the nickel-plated finish offers durability for long-term cabinet use.
Features
- Designed for frameless cabinet construction
- Blum cam adjustable clip mounting plate
- 3mm plate height
- Steel construction with nickel-plated finish
- Cam adjustment provides approximately ±2mm of height adjustment
- Attaches with a #6 x 5/8-in. wood screw
- Blum part number: 173H7130
- Made in the USA
Compatible Blum Hinges for Full Overlay Applications
This 3mm mounting plate is compatible with select Blum Clip Top hinges used for full overlay cabinet doors, including the following options:
- Clip Top 170° opening hinge with 1/2-in. overlay (BL-03703643)
- Clip Top 110° opening hinge with 1/2-in. overlay and BLUMOTION™ (BL-08884623)
- Clip Top 110° opening hinge with 1/2-in. overlay (BL-08946093)
Ideal for Frameless Cabinet Installation
Use the Blum Cam Adjustable Clip Mounting Plate to create a secure connection between compatible Blum concealed hinges and frameless cabinet boxes. The adjustable cam helps simplify final door alignment, making it a practical choice for cabinetmakers, furniture builders, and professional installers looking for precise, dependable hinge installation.
| BRAND | Blum |
|---|---|
| Hardware Line | Blumotion |
| PLATE HEIGHT | 3 mm |
| QUANTITY | (1) Each |
| SKU | BL-02364103 |
