ApolloSpray POWER-4 - 4-stage turbine with A7700GT-600 Spray-gun

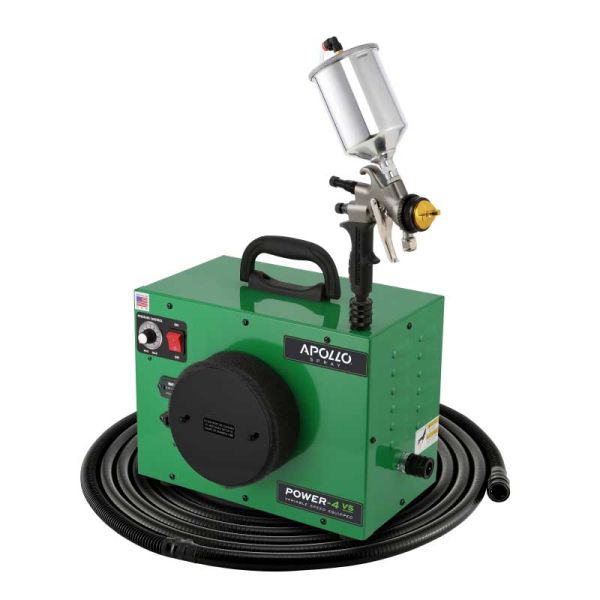

Apollo POWER-4 HVLP with 7700GT Spray Gun

Experience improved transfer efficiency, reduced overspray, and a cleaner work environment with the Apollo POWER-4 HVLP Turbospray Paint Spraying System. Designed for professional finishing applications, this TrueHVLP system produces gentle, warm, dry turbine air to help prevent moisture contamination and deliver consistent, high-quality results.

The enhanced POWER-4 four-stage turbine provides approximately 12% more power than comparable systems in its class, giving you the performance needed to spray a broader range of coatings and finishes. From thin stains and lacquers to higher-viscosity paints and protective coatings, the POWER-4 is engineered to provide excellent atomization when materials are prepared at the manufacturer's recommended viscosity.

Versatile Coating Applications

The Apollo POWER-4 is an excellent choice for woodworkers, boat builders and restorers, automotive and aircraft restorers, and professionals in industries that require fine atomization and a quality finish. It can be used with a wide variety of coatings, including stains, lacquers, enamels, polyurethanes, catalyzed finishes, conversion varnishes, linear polyurethanes, waterborne coatings, latex or emulsion paints, multi-spec paints, and more.

The system can support multiple spray guns when used with the optional A4227 Y-Connector. The POWER-4 is also available with Apollo's AtomiZer 7700 series spray gun configurations, providing flexibility for different spraying requirements and material capacities.

AtomiZer 7700GT Spray Gun

The included 7700GT AtomiZer spray gun combines advanced TrueHVLP technology with precise material and fan control for professional-quality finishing. Its durable, lightweight, and balanced gun body is precision manufactured from aircraft-grade aluminum and finished in a plated matte-bronze design.

The 7700T series features dual air and material inputs, a material adjustment knob with plus/minus indicators, and an improved air distributor. The 3-turn Air Cap design makes changing nozzle and needle sizes quick and easy, allowing the gun to accommodate a wide range of coatings and spraying applications.

Precision Atomization and Fan Control

Apollo's MicroTech Atomization Technology is designed to produce fine atomization for smooth, professional finishes. The Xpansive™ Fan Control Ring provides precise fan adjustment, helping you control the spray pattern for detailed work as well as larger surfaces.

The 7700T spray gun uses marine-grade stainless steel for its wetted internal components and is engineered without O-rings in the material path for durability and reliability. Multiple nozzle and needle sizes allow you to match the spray setup to the coating and application.

7700T Nozzle and Needle Options

• 0.5 mm
• 0.8 mm
• 1.0 mm
• 1.3 mm
• 1.5 mm
• 1.8 mm
• 2.0 mm
• 2.5 mm

Air Cap Selection

• Black CC: 0.5 mm
• Green A: 0.8 mm
• Gold B: 1.0–1.5 mm
• Blue C: 1.8–2.0 mm
• Silver D: 2.5 mm
• Gold B-HS: 0.8 mm high-solids
• Blue C-HS: 1.8–2.0 mm high-solids
• Silver D-HS: 2.5 mm high-solids

Convenient Spray Gun Storage

Apollo's Handi-Hold® Spray Gun Docking Station provides a convenient place to store, hold, or transport the spray gun in an upright position. This helps keep the gun ready for use while reducing the risk of it being knocked over or damaged between spraying sessions.

POWER-4 Specifications

• Turbine: 4-stage
• Sealed Pressure: 9.0 PSI (.062 bar)
• Airflow: 130 CFM (3.68 cmm)
• Filtration: Dual air filtration
• Spraying: HVLP, single gun
• Electrical: 110 VAC, 60 Hz or 240 VAC, 50 Hz
• Weight: 30 lbs. / 13.6 kg

What's Included

• POWER-4 HVLP Turbospray turbine system
• 7700GT AtomiZer spray gun
• 29 ft. (7.3 m) flexible air hose

7700T Spray Gun Features

• Dual air and material inputs
• Material adjustment knob with plus/minus indicators
• Lightweight, balanced aircraft-grade aluminum gun body
• Improved air distributor
• 3-turn Air Cap design for quick nozzle and needle changes
• Xpansive™ Fan Control Ring for precise fan adjustment
• MicroTech Atomization Technology
• Marine-grade stainless-steel wetted internal components
• No O-rings in the wetted internal components
• Low overspray for a cleaner spraying process
• Simple cleanup
• 2-year parts and labor warranty

Air Requirements

The 7700T spray gun has a maximum required air pressure and volume of 23 PSI / 7–11 CFM when used with an appropriate air source.

Important Note

The POWER-4 is equipped with an internal air relief valve to accommodate a non-bleed-style turbine spray gun. Because of this design, the actual flow pressure may vary from the sealed pressure specification listed above.

With its powerful four-stage turbine, advanced AtomiZer spray gun, precise fan control, and versatile coating capabilities, the Apollo POWER-4 HVLP Turbospray Paint Spraying System is built for professionals who demand dependable atomization, efficient material transfer, and a high-quality finish across a wide range of spraying applications.
