Apollo 7700GT AtomiZer

Apollo 7700T Series HVLP Spray Gun

The Apollo AtomiZer® 7700T Series HVLP Spray Gun is a versatile, technologically advanced spray gun designed to deliver exceptional True HVLP performance with both turbine spray systems and conventional air compressors. When used with an air compressor, the 7700T is compatible with systems rated at 3 HP with a 20-gallon (75-liter) tank or larger. This innovative spray gun provides excellent atomization, low overspray, and a smooth, professional-quality finish across a wide range of finishing applications.

Advanced HVLP Spray Technology

The 7700T combines precision engineering with Apollo's advanced atomization technology to give woodworkers, finishers, and professional painters greater control over material flow and spray pattern. The lightweight, balanced gun body is precision-manufactured from aircraft-grade aluminum and finished in durable matte bronze for comfortable handling and long-term reliability.

Key Features of the Apollo 7700T Series

• Dual air and material inputs allow the spray gun to be configured for turbine or compressor operation.
• Material adjustment knob features clearly marked +/- indicators for precise material-flow control.
• Lightweight, balanced gun body is precision-manufactured from aircraft-grade aluminum with a durable matte-bronze finish.
• Improved air distributor helps provide consistent air delivery and dependable atomization.
• 3-turn air cap design makes changing nozzle and needle sizes quick and easy.
• Xpansive Fan Control Ring provides precise control over spray-fan width.
• MicroTech Atomization Technology uses advanced technology to atomize coating particles for smooth, consistent results.
• Marine-grade stainless steel wetted components provide excellent durability and corrosion resistance.
• Low overspray performance helps improve transfer efficiency while producing a clean, professional finish.
• Easy cleanup helps reduce maintenance time between finishing projects.

Air Cap Options

The Apollo 7700T Series supports a broad range of air cap configurations to accommodate different coating types and application requirements.

• Standard Caps: Black CC (0.5mm), Green A (0.8mm), Gold B (1.0-1.5mm), Blue C (1.8-2.0mm), and Silver D (2.5mm).
• High Solids Caps: Gold B-HS (0.8mm), Blue C-HS (1.8-2.0mm), and Silver D-HS (2.5mm).

Multiple Nozzle and Needle Sizes

Eight nozzle and needle sizes are available to help match the spray gun to the viscosity and application requirements of the coating being sprayed. The 1.0mm size is installed as standard.

• 0.5mm
• 0.8mm
• 1.0mm
• 1.3mm
• 1.5mm
• 1.8mm
• 2.0mm
• 2.5mm

Flexible Cup and Fluid-Feed Configurations

The unique Apollo spray gun design accommodates three different fluid-feed configurations, giving users the flexibility to select the setup that best fits their finishing workflow.

• Gravity feed: 4-in. cup sizes.
• Pressure feed: 3-in. bottom cup sizes.
• Production feed: 2-quart, 2-1/2-gallon, and 10-gallon sizes.

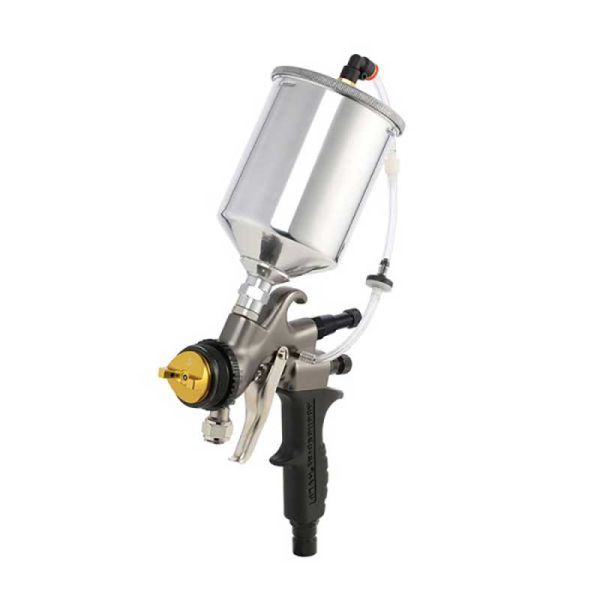

A7700GT Configuration

The Apollo A7700GT AtomiZer® configuration is offered with multiple gravity cup capacities and includes additional accessories for convenient setup and operation.

• Available in 90cc, 250cc, 600cc, and 1000cc gravity cup sizes.
• Durable matte-bronze gun body.
• Cup regulator/gauge.
• Carrying case for storage and transportation.
• Wrench (spanner) for maintenance and adjustments.

Specifications

• Maximum required air pressure: 23 PSI
• Required air volume: 7-11 CFM
• Gun weight: 29.3 oz. (0.83 kg)
• Warranty: 2-year parts and labor warranty

Professional HVLP Performance and Versatility

Whether you're applying lacquers, enamels, water-based finishes, high-solids coatings, or other finishing materials, the Apollo 7700T Series HVLP Spray Gun provides the control and versatility needed for professional-quality results. With interchangeable nozzle and needle sizes, adjustable fan control, multiple fluid-feed configurations, and compatibility with both turbine systems and appropriately sized air compressors, the 7700T is built to handle a wide range of spraying applications.
