9 x 1-7/8 in. Wafer Head Composite Fascia, 410 SS - Choose Your Color

In stock
SKU
0917-FB
Grouped product items
Product Name Qty
9 x 1-7/8 Wafer Head Composite Fascia, 410 SS, Star, Mahogany, Qty:100
$37.00
9 x 1-7/8 in. Wafer Head Composite Fascia, 410 SS, Star, Earthtone - Qty:100
$37.00
9 x 1-7/8 in. Wafer Head Composite Fascia, 410 SS, Star, Graystone - Qty:100
$37.00
9 x 1-7/8 in. Wafer Head Comp. Fascia, 410 SS, Star, Ipe - Qty:100
$37.00
9 x 1-7/8 in. Wafer Head Comp. Fascia, 410 SS, Star - White - Qty:100
$37.00

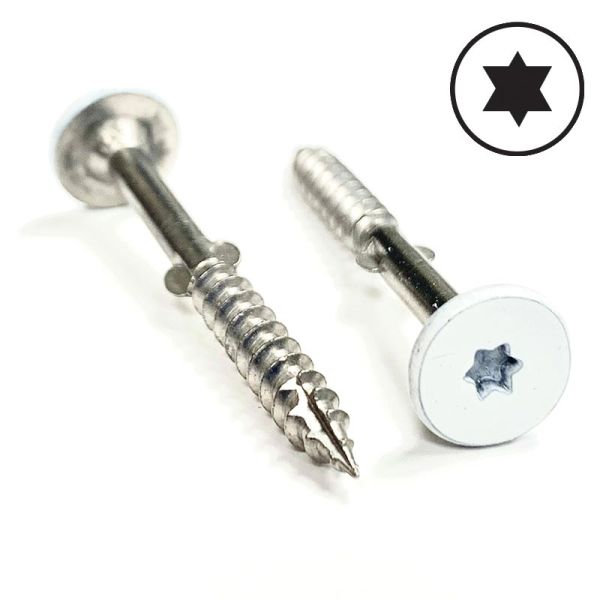

9 x 1-7/8 in. Wafer Head Composite Fascia Screw

Fascia Board Screws with color-matching wafer heads

The wafer-head screw is great for general wood-to-wood fastening where a low-profile head is needed.

A low-profile wafer head design provides a larger surface area for an aesthetically clean look. A versatile fastening solution for interior and exterior applications in a wide range of materials, including wood, concrete, masonry, sheet metal, plastic, and treated lumber.

Wings above the drill point provide a clearance hole in the workpiece so it will not climb up the shank; wings break off as the point engages the steel substrate.

How Self-Drilling Screws Work

As their name implies, self-drilling screws operate on the same principles as drill bits and other cutting tools. For any cutting tool, performance is governed by cutting speed, feed rate, depth of cut, and the work material itself. Therefore, the installation performance of self-drilling screws can be linked to the basic cutting tool parameters.

Features:

  • 410 SS
  • T-20 bit included
  • Type 17 Self-drilling point - No predrilling required
  • Color Matched Head
  • Cutting wings creates an oversized hole to allow for expansion.
  • Oversized flat top head for maximum hold.
More Information
SIZE (#8, #10 ...)#9
LENGTH1-7/8 in.
MATERIALStainless Steel, 410
RECESS TYPEStar / Torx
HEADWafer
POINT TYPEType 17
BRANDMcFeely's
RECESS SIZET-20
QUANTITYAssorted
RoHS Compliant?No
SKU0917-FB
