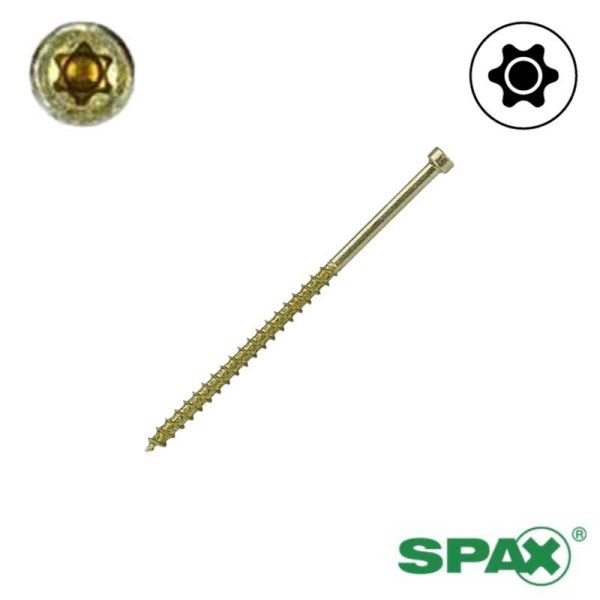

8 x 3-1/8 in. SPAX Trim Head Double Thread, HCR Yellow, T-Star Plus - Qty:100
HCR Yellow Coated, T-10 T-Star Plus, Torx Driver Bit
8 x 3-1/8 in. SPAX® Trim Head Double Thread Screws, HCR Yellow, T-Star Plus - Qty:100
Designed for trim work and other wood connections around residential projects, these SPAX® trim head screws feature a yellow HCR® (High Corrosion Resistance) coating for enhanced corrosion protection when fastening treated lumber and other compatible wood materials. The trim-style head is designed to countersink for a clean, flush, near-hidden finish.
Key Features
- Trim head design: Small-diameter head countersinks easily for a clean, professional-looking finish.
- T-Star Plus™ drive: Provides excellent bit engagement to help reduce cam-out and make single-handed installation easier.
- Patented thread serrations: Cut efficiently through wood fibers to increase installation speed and reduce driving resistance.
- 4CUT™ point: Arrow-shaped screw tip helps reduce splitting and can eliminate the need for pre-drilling in many wood species.
- Double-thread design: Helps speed installation while providing strong, consistent fastening performance.
- Reverse thread: Helps pull composite decking material back toward the screw hole to reduce mushrooming and create a more even surface.
- Yellow HCR® coating: Dual-barrier corrosion-resistant coating system designed for increased fastener longevity in treated-lumber applications.
- Grade 5 durability: Manufactured from heat-treated cold-rolled carbon steel for reliable strength.
HCR® High Corrosion Resistance Coating
The yellow HCR® coating system is designed to extend the service life of SPAX® fasteners used in treated lumber applications. The dual-barrier system incorporates an electrically applied substrate and proprietary organic topcoat, providing up to 1,000 hours of salt spray performance.
4CUT™ Point for Easier Installation
The SPAX® 4CUT™ point is engineered to penetrate wood fibers efficiently without requiring pre-drilling in many applications. Its specialized arrow-shaped geometry helps create a fast initial grip, reduce insertion torque, and minimize the tendency of wood to split. For hard woods, pre-drilling is recommended even when using a 4CUT™ point.
Clean Finish for Trim and Composite Materials
The trim head is designed to sit flush or near flush in the material for a discreet finished appearance. The reverse-thread section helps draw surrounding composite material back toward the fastener hole as the screw is driven, reducing mushrooming and helping produce a more uniform surface.
Recommended Applications
These SPAX® trim head screws are suitable for a variety of interior and exterior wood connection applications, including residential construction, wood trim, treated lumber, and compatible composite decking materials. They are intended for use with pressure-treated lumber and general-purpose wood trim products within appropriate AWPA use categories, including UC1 through UC4A.
For applications involving cedar or redwood substrates, SPAX® recommends using stainless steel fasteners for enhanced corrosion resistance.
Product Specifications
- Size: 8 x 3-1/8 in.
- Head Style: Trim Head
- Drive: T-Star Plus™
- Thread: Double Thread with Reverse Thread Section
- Material: Heat-Treated Cold-Rolled Carbon Steel
- Strength: Grade 5 Durability
- Coating: Yellow HCR® High Corrosion Resistance
- Point: 4CUT™
- Quantity: 100
| SIZE (#8, #10 ...) | #8 |
|---|---|
| LENGTH | 3-1/8 in. |
| MATERIAL | Corrosion Resistant Coated |
| COUNTERSINK NIBS | Without Nibs |
| RECESS TYPE | Star / Torx |
| HEAD | Cylindric |
| POINT TYPE | Specialty |
| BRAND | SPAX |
| RECESS SIZE | T-10 |
| QUANTITY | MED (51-150) |
| Color | Yellow |
| RoHS Compliant? | No |
| SKU | 0832-TDY-C |
| Prop 65 | All SPAX® screws, regardless of coating, are in compliance with California Propostion 65 (Safe Drinking Water and Toxic Enforcement Act of 1986).
|
All SPAX® screws, regardless of coating, are in compliance with California Propostion 65 (Safe Drinking Water and Toxic Enforcement Act of 1986).
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
