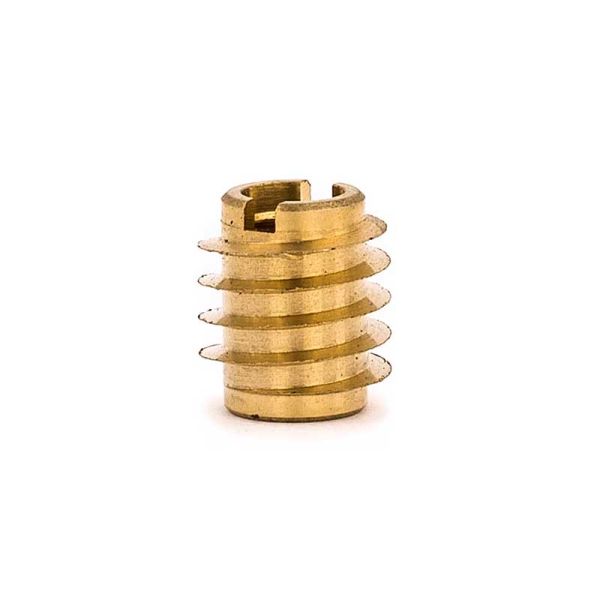

8-32 x 3/8 in. Solid Brass Threaded Inserts for Hard Wood

8-32 x 3/8 in. Solid Brass Threaded Inserts for Hard Wood

Brass threaded inserts are an excellent choice for projects involving softer materials like softwood, hardwood, thermoset plastics, and thermoplastics.

Threaded brass inserts create a more secure join between components and provide a reusable connection when a product needs to be disassembled and reassembled.

Installing threaded brass inserts is easy. When using threaded inserts for plastic, simply press the insert into the molded plastic. On the other hand, threaded inserts for wood can be easily installed with a screwdriver, bolt/jam nut, or a drive tool.

Keep in mind that insert hole size requirements can vary quite a bit depending on the material and other factors; for this reason, we recommend testing out a product before committing to your final project installation.

Uses

• Furniture
• Cabinetry
• Outdoor Furniture
• Storm Shutters
• Thermoset Plastics
• Thermoplastics

Installation:

1. Drill a hole like the body diameter or drill Size.
2. Thread in the insert into the prepared Pilot Hole using an installation bit
3. Drill a clearance hole in the piece to be joined and assembled with the appropriate machine screw.

Best when used inside or face grain.

Specs:

• Internal Threads: 8-32
• Pilot Hole Drill Size: 17/64in.
• Body Diameter: 1/4 in.
• External Thread Diameter: 21/64 in.
• Overall Length: 3/8 in.
