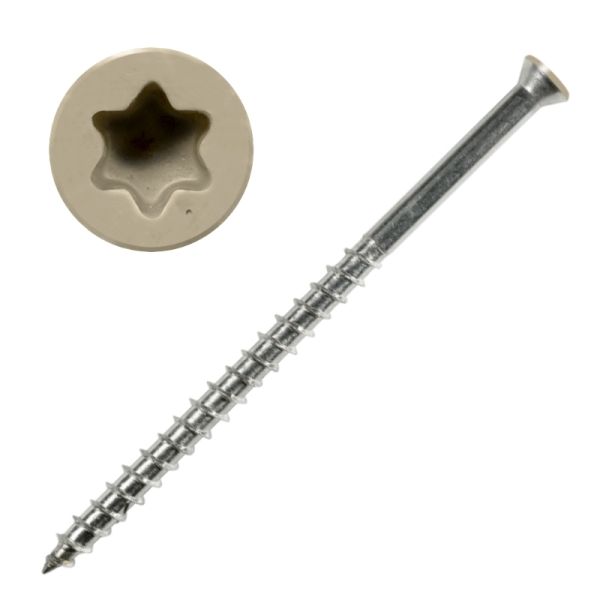

#7 x 2-1/4 in. Trim Head, 305 SS, Star, Tan - Qty:1750
Simpson Strong-Tie 305 Stainless Exterior Trim-Head Wood Screw
For Natural Wood and Excellent Corrosion Resistance
These Exterior Wood Screws are designed for natural wood with 305 stainless steel for excellent corrosion resistance. The Type-17 point eliminates the need for pilot holes with the exception of screws drilled near the end of boards.
#7 x 2-1/4 in. Trim Head Screws
FEATURES:
- Trim style head is less noticeable on decking surface
- Type-17 point cuts wood fibers for fast starts and reduced lateral pressure which helps prevent splitting.
- Coarse threads approximately 2/3 of the shank to draw the deck boards tightly.
- Six lobe star drive helps prevent cam-out and head stripping.
- 305 Stainless Steel for excellent corrosion resistance
- Painted heads help screw head blend in with deck board
INSTALLATION NOTES:
- Coverage = Approximately 350 screws per 100 square feet (6 in. nominal-width decking boards secured to joists spaced 16 in. on center)
- Use with T-15 x 6 lobe driving bit.
- Pre-drilling near the ends of deck boards recommended.
For SEASIDE, POOLSIDE, or Salt-Spray exposure, type 316 stainless steel is recommended.
| SIZE (#8, #10 ...) | #7 |
|---|---|
| LENGTH | 2-1/4 in. |
| MATERIAL | Stainless Steel, 304 & 305 |
| COUNTERSINK NIBS | Without Nibs |
| RECESS TYPE | Star / Torx |
| HEAD | Trim |
| POINT TYPE | Self Drilling Wood |
| BRAND | McFeely's Head Coated |
| RECESS SIZE | T-15 |
| QUANTITY | Keg |
| Color | Tan |
| Unthreaded Length | 1 in. |
| Threaded Length | 1-1/4 in. |
| Head Diameter | 7/32 in. |
| Unthreaded Shank Diameter | 1/8 in. |
| RoHS Compliant? | No |
| SKU | 0722-TT5-TN-K |
| SPECS: | SPECS:
|
| Prop 65 |
|
WARNING: This product can expose you to chemicals such as copper, nickel, lead or chromium which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
