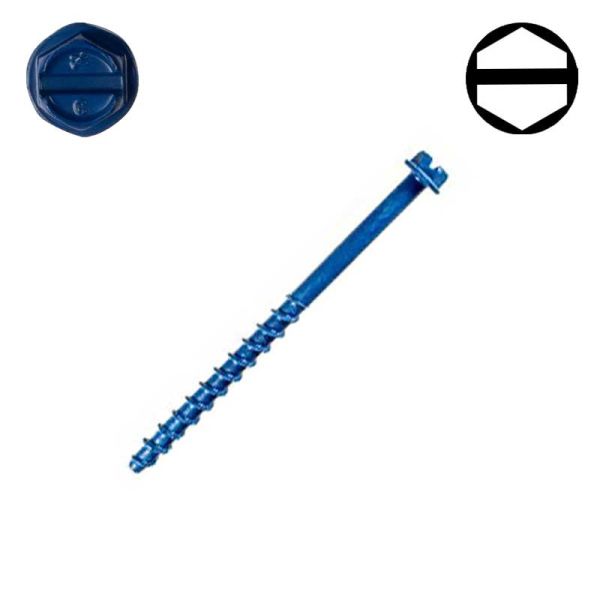

3/16 x 2-3/4 in. Hex Head, Titen Concrete and Masonry - Qty: 25
The Titen 2 concrete and masonry screw is ideal for attaching all types of components to concrete and masonry.
The improved thread design undercuts the base material more efficiently, reducing installation torque and making it easier to drive without binding, snapping or stripping, even during installation into hard base material.
Key Features
- Patented undercutting threads reduce installation torque
- Innovative design increases load capacity
- Code listed in accordance with ICC-ES AC193 for concrete application (IAPMO UES ER-449)
- Suitable for near-edge concrete installations without expansion forces and cracking
- Installs with Standard ANSI drill bits
- Preservative-treated-wood applications: suited for use in non-ammonia formulations of CCA, ACQ-C, ACQ-D, CA-B, BX/DOT and zinc borate
- Use in dry interior environments only
Material
- Carbon steel
Finish
- Zinc plated with baked-on ceramic coating
| SIZE (#8, #10 ...) | 3/16 in. |
|---|---|
| LENGTH | 2-3/4 in. |
| MATERIAL | Zinc, Clear |
| COUNTERSINK NIBS | Without Nibs |
| RECESS TYPE | Slotted |
| HEAD | Hex |
| POINT TYPE | Concrete |
| BRAND | Simpson Strong-Tie |
| RECESS SIZE | Hex Socket |
| QUANTITY | SML (1-50) |
| RoHS Compliant? | No |
| SKU | RFX-0326-D |
| Prop 65 |
|
WARNING: While working in a hazardous areas where you can be exposed to flying objects, fragments, and particles, primary protective devices such as safety glasses or goggles with side shields must be worn. Secondary protective devices such as a face shield is required in conjunction with primary protective devices during severe exposure to impact hazards.
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
