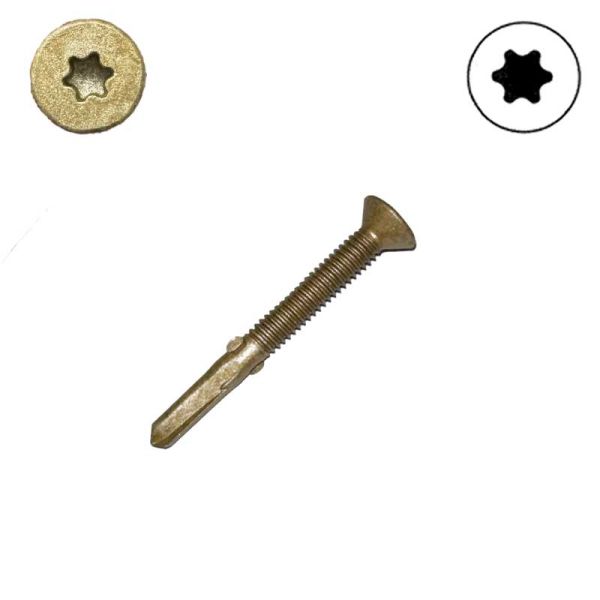

Flat Head Self Drill with Reamer Wings • Bronze Coated (Exterior) • Star Drive
Point Wings are used to fasten thicker materials. The wings enlarge the hole in the fastened material, allowing the threads to pass through without contacting the fastened material.
Used in applications such as wood to metal
Wings ream out the wood and then break off when encountering the metal to ensure a strong connection to the metal frame. Self-drilling tip to penetrate up to 1/4" metal
| SIZE (#8, #10 ...) | #12 |
|---|---|
| LENGTH | 2 in. |
| MATERIAL | Corrosion Resistant Coated |
| RECESS TYPE | Star / Torx |
| HEAD | Flat |
| POINT TYPE | Self Tapping Metal |
| BRAND | Big Timber |
| RECESS SIZE | T-25 |
| QUANTITY | 1 Lb Container |
| RoHS Compliant? | No |
| SKU | 1220-FZS-LB |
