12 x 2 in. Big Timber Wood-To-Steel Self-Drilling Screw, with wings

12 x 2-1/2 in. Big T Wood-To-Steel Self-Drilling Screw, Coated, Flat Head, T-25 - Qty:53

10-16 x 1-1/4 in. Self-Drilling Metal Screws

10-16 x 1-1/4 in. Self-Drilling Metal, Zinc, Hex Head, Hex

12-24 x 2-1/2 in. Trailer-Deck 410 SS, Square Drive, w/Nibs

Be the first to review this product
In stock
SKU
1224-F41
Grouped product items
Product Name Qty
12-24 x 2-1/2 Trailer-Deck Screws - 410 SS, Square, Nibs, Qty:100
$97.79
12-24 x 2-1/2 Trailer-Deck Screws - 410 SS, Square, Nibs, Qty:1000
$535.81
12-24 x 2-1/2 Trailer-Deck Screws - 410 SS, Square, Nibs, Qty:1800
$931.18
Add to Wish List Add to Compare
Email

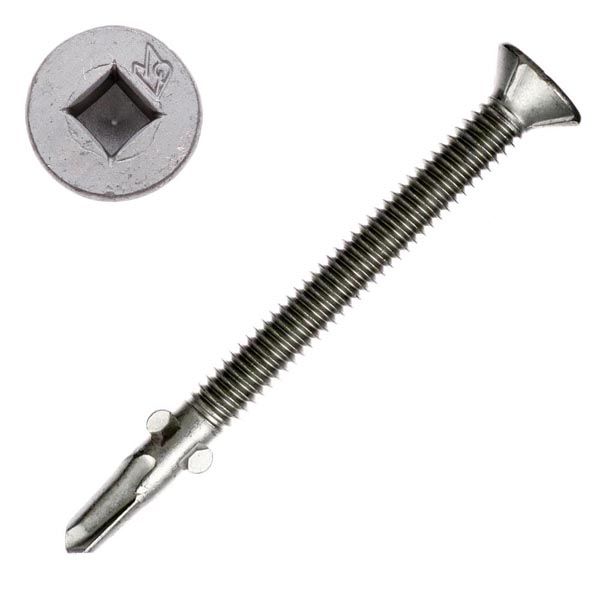

Self-Drilling Flat-Head Screw with Wings 12x2 1/2 inch

Designed for attachment of 2X nominal lumber 1-1/2 thick actual

Use this screw for securing wood, plywood, and fiber cement to steel (up to 0.209" thick). Wings bore through the wood to create a clearance hole so the piece does not climb up the shank and then break off as they engage with steel.

FEATURES:

  • Self-drill metal tapping point
  • Hole Enlargement Tabs prevent board jacking.
    • As the screw is driven, the tabs enlarge the hole in the wood member to prevent thread engagement in the wood. This prevents gaps between the wood member and the substrate (board jacking)
    • Once the tabs reach the metal substrate, they break off, allowing the screw threads to self-tap threads in the metal.
  • Self-Countersinking - Nibs on the underside of the head allow the screw to self-countersink.
  • #3 self-drilling point designed for a total material thickness of .110" to .210".
  • 2" Screws for 1X (5/4 nominal) decking
  • Threads are 24 per inch.
  • Thickness of truck bed from 0.110" to 0.210"
  • Made of Type 410 SS.

INSTALLATION:

  • Drill Speed no more than 1,200 rpm (best to use lower speed, higher torque driver setting)
  • As material hardness increases, lower drill speed is recommended.
  • Do not use with most impact driver drills.
More Information
SIZE (#8, #10 ...)#12 - 24 (Bolts)
LENGTH2-1/2 in.
MATERIALStainless Steel, 410
RECESS TYPESquare
HEADFlat
POINT TYPESelf Tapping Metal
BRANDMcFeely's
RECESS SIZE#3
Unthreaded Length1/2 in.
Threaded Length2 in.
Head Diameter25/64 in.
Unthreaded Shank Diameter3/16 in.
RoHS Compliant?No
SKU1224-F41
