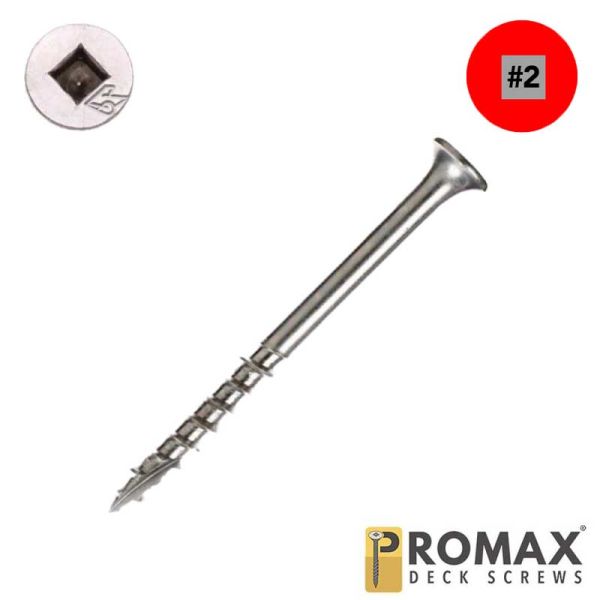

10 x 2-3/8 in. ProMax Bugle Head, 305 SS, Square - Qty:100

10 x 2-3/8 in. ProMax Bugle Head, 305 SS, Square - Qty:100

ProMax™ Optimized Thread Length™: What It Means and Why You'll Like It!

ProMax™ Deck Screws: Optimized for Better Fastening

Deck screws are a good example of why thread length matters. A typical 3-inch screw used with 2 x 4 or 2 x 6 decking may have about 1 inch of unthreaded shank. Because standard decking material is approximately 1-1/2 inches thick, the threaded portion can bridge the joint between the deck board and the framing below. This can keep the board from pulling down tightly, leave an uneven surface, or lead to over-driving the screw in an attempt to close the gap.

ProMax™ screws are designed differently. Their thread length is optimized so the smooth shank can pass through the top board while the threads engage the framing below. This helps reduce cross-threading and allows the screw to pull the materials together more effectively. The 1/8-inch length increments also make it easier to choose the longest practical screw for the application.

For best results, choose a screw with an unthreaded shank length that is equal to or slightly greater than the thickness of the material being fastened. In many applications, the smooth shank and self-drilling point allow installation without pre-drilling.

Deep Thread Design

ProMax™ screws use a deep thread profile created by a reduced-diameter shank. This increases thread depth and improves holding power in wood. The single-lead thread advances one thread pitch with each full revolution of the screw.

The deeper thread profile provides excellent resistance to pull-out and helps create a strong, secure connection.

Bugle Head

The bugle head has a tapered shape that allows the screw to seat neatly into the workpiece without requiring a separate countersink in many applications. This head style is commonly used where a smooth, finished surface is desired.

The bugle-shaped profile helps the head countersink gradually and consistently, while the deep drive recess provides good engagement with the driver bit. The shape resembles the bell of a bugle or trumpet, which is where the name comes from.

Stainless Steel for Pressure-Treated Lumber

Modern pressure-treated lumber commonly uses preservatives such as ACQ and other copper-based treatments. These treatments can be more corrosive to metal fasteners than older CCA-treated lumber, making fastener selection especially important.

Stainless steel remains one of the best choices for long-term corrosion resistance in pressure-treated lumber and other demanding outdoor applications. ProMax™ stainless steel screws are designed for these environments and provide excellent resistance to rust and corrosion.

Because many stainless steels are not as hard as heat-treated carbon steel, stainless screws generally have lower torque strength than comparable hardened steel screws. For this reason, ProMax™ stainless screws use a larger #10 diameter to provide strength similar to smaller hardened steel fasteners.

Installation Tips for Stainless Steel Screws

• Pre-drilling is recommended in dense hardwoods and other high-torque applications.
• Using the correct driver bit helps prevent stripping and reduces stress on the screw.
• A larger screw diameter can provide additional strength where higher driving torque is required.
• Avoid over-driving, which can weaken the connection or damage the screw.

About Stainless Steel

Stainless steel provides excellent corrosion resistance because its alloy content forms a protective surface layer that helps resist oxidation. While no fastener is completely immune to corrosion in every environment, stainless steel offers excellent durability for outdoor, coastal, and pressure-treated lumber applications.

Many stainless steel grades contain nickel and may be only weakly magnetic or non-magnetic. As a result, some stainless screws may not hold securely to a magnetic driver bit or bit holder.
