#10 Auger-Point 305 SS Bugle-Head Assortment

#10 Stainless Bugle Head Self-Drilling Wood Screw Kit

You'll be amazed at the difference an auger point makes on a Stainless Steel screw!

Great for use with pressure-treated wood or premium materials like Redwood and Western Red Cedar because they are truly self-drilling. Passivated type 305 stainless steel provides even more corrosion resistance than the usual type 304 stainless (a bit of extra nickel helps).

The Type 17 point is not a thread style but can enhance the performance qualities of most thread styles used in the woodworking industry. A slot or notch is cut out at the point of the screw that acts like an auger or drilling tip. The slot carves away the material, thus allowing it to self-drill into most types of wood. It can often eliminate the need for a pre-drilled hole to relieve splitting. The Type 17 point is excellent for hardwoods, softwoods, particleboard, and especially MDF.

Deep Thread: Characterized by a reduced diameter shank resulting in a deep thread profile. A single lead thread, meaning that one revolution advances the screw one pitch. (Pitch equals one divided by the number of threads per inch. For a screw with ten threads per in., one revolution will advance the screw 1/1O in. into the wood.)

The deep thread form provides superior resistance to pull-out.

To avoid any potential splits, test or pre-drill when you install at the end of a board.

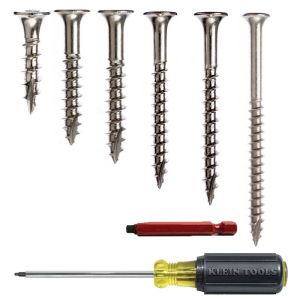

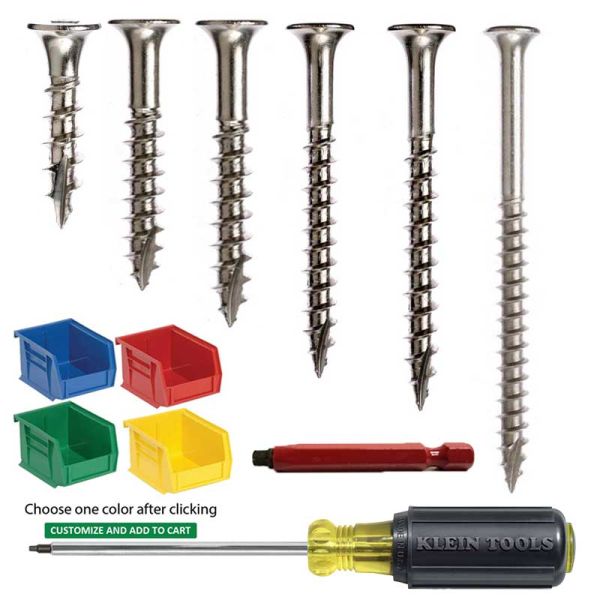

INCLUDES:

• 100 each of:
  • 1010-FA5 - 10 x 1 in. Bugle Head Self-Drilling, 305 SS, Square
  • 1012-FA5 - 10 x 1-1/4 in. Bugle Head Self-Drilling, 305 SS, Square
  • 1014-FA5 - 10 x 1-1/2 in. Bugle Head Self-Drilling, 305 SS, Square
  • 1020-FA5 - 10 x 2 in. Bugle Head Self-Drilling, 305 SS, Square
  • 1024-FA5 - 10 x 2-1/2 in. Bugle Head Self-Drilling, 305 SS, Square
  • 1030-FA5 - 10 x 3 in. Bugle Head Self-Drilling, 305 SS, Square
• (1) - HX-0225 - #2 x 2 in. Square-Drive bit
• (1) - KLT-0662 - #2 x 4 in. Klein Hand Driver
• (6) - 86216 - Ultra Stack & Hang Bin - 3 in. x 4-1/8 in. x 5-3/8 in. - You Choose Color
• (6) - Bin Labels

Not suitable for marine/ocean-side use.

BIN FEATURES:

• Cleat on back of bin allows for wall hanging (bins hang securely on wall bracket)
• Stackable
• Made from high-density, FDA-approved polypropylene/polyethylene and will not rust or be affected by weak acids or alkalis
• Dimensions - 4-1/8 in. Wide x 3 in. High x 5-3/8 in. Deep

Bin colors available to match the color coding for a screw's driver bit size:

• Yellow = #0 Recess / Driver Bit Size
• Green = #1 Recess / Driver Bit Size
• Red = #2 Recess / Driver Bit Size
• Blue = All Others including #3 Recess / Driver Bit Size

Note: Bin color of your choice even though what is shown in the picture is one color choice.

For wall hanging brackets, add SKU: BINS-BRKT to your cart
