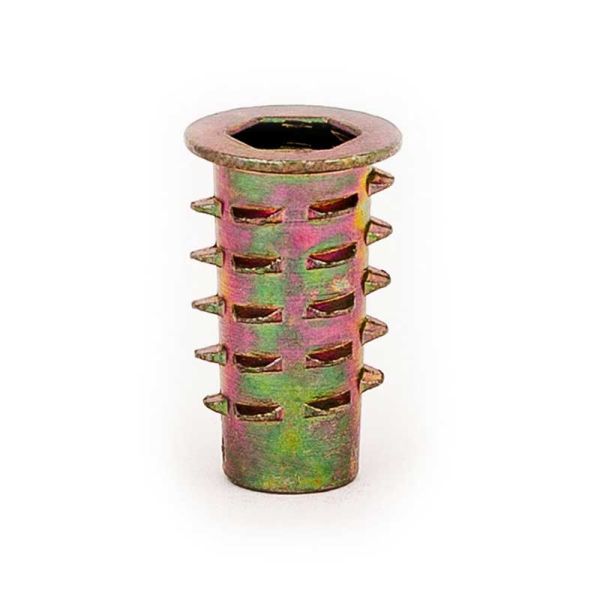

1/4-20 x 20 mm Flanged Threaded Insert for Soft Wood, Zinc - Qty:25
Manmade wood products like Medium Density Fiberboard (MDF), particle board and flake board have many uses, but attaching hardware to them can be difficult.
E-Z Hex™ inserts feature broad external threads that provide exceptional holding power in materials like pine, composition board, MDF, and plywood. We offer E-Z Hex™ with internal threads. These threaded inserts are designed to cope with the fine grain structure of these materials. The specially designed interrupted knife threads easily cut their way into these materials yet offer significant resistance for removal. Flanged version prevents driving these too deep beneath the surface. Install with a metric sized hex wrench, or the appropriately sized driver to install.
The silver appearance of Clear Zinc has been around for many years and remains very popular. It also provides a moderate level of rust protection. Since this is a true electroplating, the zinc coating is part of the surface of the steel and very durable.
inserts install quickly with an Allen wrench or optional drive tool. Threaded Insert Driver Sold Separately
Features
- Inexpensive solution for reinforcing threads in soft woods
- Install with Allen wrench or optional drive tool
- Inch or metric threads available
- Flush and flanged designs available
- Multiple lengths available
Applications:
- Ready to Assemble Furniture
- Drawer Pulls
- Display Cases
- Crating
- Materials such as pine, plywood, composition board, and MDF
- ...anywhere a threaded fastener is installed in soft wood
| BRAND | McFeely's |
|---|---|
| MATERIAL | Zinc, Die Cast |
| SIZE (#8, #10 ...) | 1/4 - 20 (Bolts) |
| QUANTITY | 25-Pack |
| PILOT / TAP SIZE | 23/64 in. |
| LENGTH | 51/64 in. |
| RoHS Compliant? | No |
| SKU | 9035-HD-D |
| Prop 65 |
WARNING: This product can expose you to chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
WARNING: This product can expose you to chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
