Dowel Screw Specs

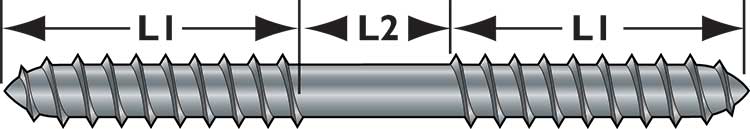

Size/Sku	Length	L1	L2	Hardwood Pilot	Softwood Pilot
Use dowel screws to connect two wooden parts that have blind holes, such as the finial on a stair railing. Dowel screws over 1-1/2 in. L are unthreaded in the center to make installation with a pair of locking pliers easy.
3/16 - DS-1812	1-1/4 in.	3/4 in.	0 in.	11/64 in.	5/32 in.
3/16 - DS-1814	1-1/2 in.	7/8 in.	1/4 in.	11/64 in.	5/32 in.
3/16 - DS-1820	2 in.	1-1/8 in.	1/4 in.	11/64 in.	5/32 in.
3/16 - DS-1824	2-1/2 in.	1-3/8 in.	1/4 in.	11/64 in.	5/32 in.
3/16 - DS-1830	3 in.	1-3/8 in.	1/4 in.	11/64 in.	5/32 in.
1/4 - DS-2514	1-1/2 in.	3/4 in.	0 in.	15/64 in.	7/32 in.
1/4 - DS-2520	2 in.	7/8 in.	1/4 in.	15/64 in.	7/32 in.
1/4 - DS-2524	2-1/2 in.	1-1/8 in.	1/4 in.	15/64 in.	7/32 in.
1/4 - DS-2530	3 in.	1-3/8 in.	1/4 in.	15/64 in.	7/32 in.
1/4 - DS-2534	3-1/2 in.	1-5/8 in.	1/4 in.	15/64 in.	7/32 in.
5/16 - DS-3120	2 in.	7/8 in.	1/4 in.	19/64 in.	9/32 in.
5/16 - DS-3124	2-1/2 in.	1-1/8 in.	1/4 in.	19/64 in.	9/32 in.
5/16 - DS-3130	3 in.	1-3/8 in.	1/4 in.	19/64 in.	9/32 in.
5/16 - DS-3134	3 1/2 in.	1-5/8 in.	1/4 in.	19/64 in.	9/32 in.
3/8 - DS-3730	3 in.	1-3/8 in.	1/4 in.	23/64 in.	11/32 in.
3/8 - DS-3734	3-1/2 in.	1-5/8 in.	1/4 in.	23/64 in.	11/32 in.
3/8 - DS-3740	4 in.	1-5/8 in.	3/4 in.	23/64 in.	11/32 in.
