Apollo Introducing the New Falcon Series HVLP Units

November 1, 2021, Apollo is launching the newest member of the Apollo turbo spray products family, the Falcon® Spray DIY systems. These will be built on a similar platform to the current ECO systems and available in the same 3, 4 and 5-stage models. The motors and specs remain the same, only the case is slightly smaller and thus a little lighter to make them more portable. The Falcon line is replacing the ECO line which has been out for 10 years.

Apollo Falcon Spray FS3 HVLP w/E7700GTO Spray Gun
  • E5011 Bleeder with Bottom Cup
  • E7000 Non-Bleeder with Bottom Cup
  • E7700GTO Non-Bleeder with Gravity Cup

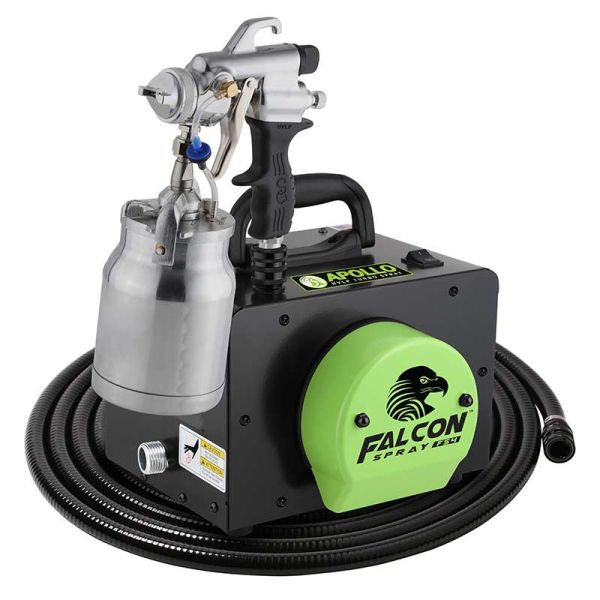

Apollo Falcon Spray FS4 HVLP w/E7000 Spray Gun
  • E5011 Bleeder with Bottom Cup
  • E7000 Non-Bleeder with Bottom Cup
  • E7700GTO Non-Bleeder with Gravity Cup

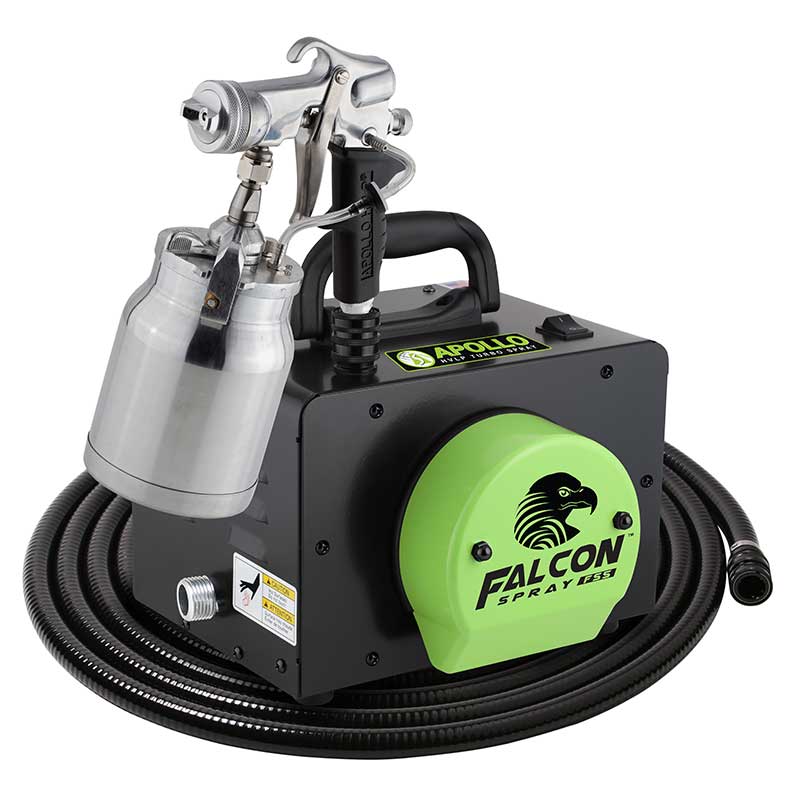

Apollo Falcon Spray FS5 HVLP w/E5011 Gun
  • E5011 Bleeder with Bottom Cup
  • E7000 Non-Bleeder with Bottom Cup
  • E7700GTO Non-Bleeder with Gravity Cup

Apollo Press Release - POWER-5 VS PLUS System AWFS Award

Apollo Videos


Also, check out our McFeely's University for product information and project ideas.

Choose the best HVLP Turbo Spray System for your needs, easy as 1, 2.

1. First choose your performance options (turbo system power and features).
2. Second choose your Series, based on usage and spray gun desired.



Performance Options

3 STAGE


  • Apollo 3 stage systems wlll spray ALL coatings - some wlll require thinning.
  • Best finish results achieved with low to medium viscosity coatings, solvent or waterbase.
  • Apollo enhanced 3 stage power {7.0psi - sealed)
  • Utilizes Exclusive Tapered Fan Technology (TF™) for additional atomizing pressure
  • Apollo 3 Stage TrueHVLP™ Turbo spray motors are optimized to meet the demands of HVLP.

4 STAGE


All the features and benefits of APOLLO 3 Stage TrueHVLP™ turbo paint spray systems, PLUS:

  • APOLLO enhanced 4 stage power output (9.0psl - sealed)
  • Higher turbo spray pressures - sprays thicker viscosities quickly and easily
  • Less viscosity compromise - less or no thinning with a wide variety of finishes
  • Excellent results with pigmented coatings.

5 STAGE


All the features and benefits of APOLLO 4 stage turbo paint spray systems, PLUS:

    • APOLLO 5 stage power (10.0psl - sealed) - an APOLLO exclusive!
    • Will spray ALL coatings with least viscosity adjustment.
    • Best choice to spray the widest range of coatings, finishes, and viscosities.




Apollo Spay Systems

Apollo Falcon Spray FS4 HVLP w/E7000 Spray Gun

Falcon Series

Falcon SERIES ASI-HVLP systems are designed for the small workshop finisher who desires high performance in a low priced HVLP Turbospray System....Read More

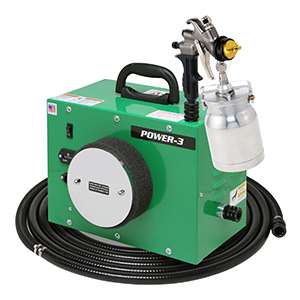

Apollo Power Series

Power Series

Increased power in our 3-stage (POWER-3), our 4-stage (POWER-4), our 5-stage (POWER-5 VS) enables you to produce ultra-fine atomization creating a remarkably consistent smooth surface all while achieving at least 80-90% transfer efficiency...Read more

Apollo Precision Series

Precision Series

Pressure Control System (PCS™) controls motor speed, voltage and amperage adjusting automatically for altitude and barometric pressure assuring precise atomizing pressure worldwide Documented 80™ transfer efficiency "nd 38" savings on coating when compared with compressed air systeprecision...Read more

Apollo ECO Series

Apollo ECO Series

ECO SERIES ASI-HVLP systems are designed for the small workshop finisher who desires high performance in a low priced HVLP Turbospray System. Our 50 years of only building the highest quality Turbo spray systems in the world has resulted in the best quality USA made semi-professional HVLP Turbospray systems, the ECO-Series.

ECO-MINI: If your primary applications are clear coats, solvent or waterbase, on wood projects, or the coatings you are using are low to medium viscosity, the 5.5 PSI motor inside the ECO-MINI will give you excellent results. Two spray guns are available with the ECO-MINI; E6000 Bleeder and E7200 Non-Bleeder.

ECO-3: If your primary applications are clear coats, solvent or waterbase, on wood projects, or the coatings you are using are low to medium viscosity, the powerful 7.0PSI (1508 watt) motor inside the ECO-3 will give you excellent results.

ECO-4: If you are looking to add the ability to spray pigmented coatings and slightly higher viscosity or harder to atomize coatings the powerful 9.0PSI (1568 watt) motor inside the ECO-4 would be a great choice.

ECO-5: For the ultimate in HVLP Turbospray and the ability to easily spray the widest range of coating viscosities, clear or pigmented, solvent or waterbase, easy or hard to atomize, the extremely powerful 9.5PSI (1858 watt) motor inside the ECO-5 will give you outstanding results. The ECO-5 will spray latex (emulsion) paints with the least compromise.

Apollo Power Series

Apollo Power Series

Unique Technology and Precision Features:

Increased power in our 3-stage (POWER-3), our 4-stage (POWER-4), our 5-stage (POWER-5) enables you to produce ultra-fine atomization creating a remarkably consistent smooth surface all while achieving at least 80-90% transfer efficiency.


Apollo spray systems are noted for:

  • Spraying low to high viscosity coatings
  • Producing at least 80-90% transfer efficiency
  • Award-winning AtomiZer™ 7700 Series Spray Guns
  • Ergonomic designs that reduce operator fatigue

Promoting a Cleaner, Safer Working Environment:

Higher transfer efficiency prevents the addition of particulates into the atmosphere making the air cleaner for the equipment operator and reducing pollution of the general environment.

Apollo Sprayers offers a unique array of industrial HVLP Turbospray and Compressed Air HVLP Spray Guns to meet the demands of today’s woodworker. Apollo’s award winning HVLP compressed air spray guns let the operator have the control and precision of HVLP while using a standard air compressor. Whatever your power source, Turbospray or compressor, Apollo Sprayers HVLP has a powerful, precise addition to your equipment arsenal. Please select the appropriate link for the equipment you desire.

Apollo Precision Series

Apollo Precision Series

Advanced Precision Features

Pressure Control System (PCS™) controls motor speed, voltage and amperage adjusting automatically for altitude and barometric pressure assuring precise atomizing pressure worldwide Documented 80% trade; transfer efficiency and 38% savings on coating when compared with compressed air systems.

NEW: Throttle Back Control (TCB™) – Permits highest available flow pressure and increased motor longevity.

NEW: LCD Message Center – Accurate Pressure Display – Motor Idle – Temperature – Hour Use meter

The enhanced power and exclusive features of the PRECISION-5 put you in control of the most advanced TrueHVLP system for industries and applications demanding precision HVLP technology for the perfect finish.

The PRECISION-5 comes with the Handi-Hold™ Spray Gun Docking Station to store, hold or transport your spray gun safely. Use the PRECISION-5 for the widest range of coatings, solvent or waterbase, clear or pigmented as well as specialized materials: faux paints, gelcoat, latex (emulsion) and multi-spec.

Apollo Turbine Spray Guns

Apollo Spray Guns

Higher transfer efficiency prevents the addition of particulates into the atmosphere making the air cleaner for the equipment operator and reducing pollution of the general environment.

Apollo Sprayers offers a unique array of industrial HVLP Turbospray and Compressed Air HVLP Spray Guns to meet the demands of today’s woodworker. Apollo’s award winning HVLP compressed air spray guns let the operator have the control and precision of HVLP while using a standard air compressor. Whatever your power source, Turbospray or compressor, Apollo Sprayers HVLP has a powerful, precise addition to your equipment arsenal. Please select the appropriate link for the equipment you desire.
