160° Wide Angle Full Overlay Cranking 03 Hinge

  • One hinge type for all door thicknesses 14 – 24mm
  • Overlay from 19 – 11.5mm
  • Self-closesor Soft- Close
  • For face frame or frameless cabinets
  • Zero protrusion when door is opened 90°
  • Minimal reveal
  • 3–dimensional adjustment with suitable base plate
    • Depth adjustment +3/–2mm via self–locking worm screw
    • Height adjustment +/–2mm on base plate via hinge arm
    • Wide adjustment with overturn stop +/–2 via hinge arm
  • Impresso for tool free application

Hinge Options

Tiomos® 160 Degree Overlay Self-Close Hinge

Tiomos® 160 Degree Overlay Soft-Close Hinge

FFP = Face Frame Plate
FLP = Frameless Plate

GA-FFP-I = F058139831228 Inset Face Frame Adapter Base Plate, 3 Point Fixing Height 0 *Requires a 9.5 Crank Hinge (Half Overlay)
GA-FFP-34 = F058139825228 Face Frame Adapter Base Plate, 2 Point Fixing Height 1.5
GA-FLP-FH = F058139749228 Wing Base Plate, 4 Point Fixing Height 3.5
GA-FFP-12 = F058139827228 Face Frame Adapter Base Plate, 2 Point Fixing Height 4.5
GA-FLP-I = F058139888217 Wing Base Plate, 2 Point Fixing 37/32 Height 9.5
GA-FLP-19 Wing base plate, 2 point fixing Height 19

MMInchDrilling Distance (DD)Full Overlay
    3 4 5 6 7 8 9 10
25                0
24.5
2415/16"             0
23.5
23            0   0
22.5
227/8"         0   2 3
21.5
21        0   2 3

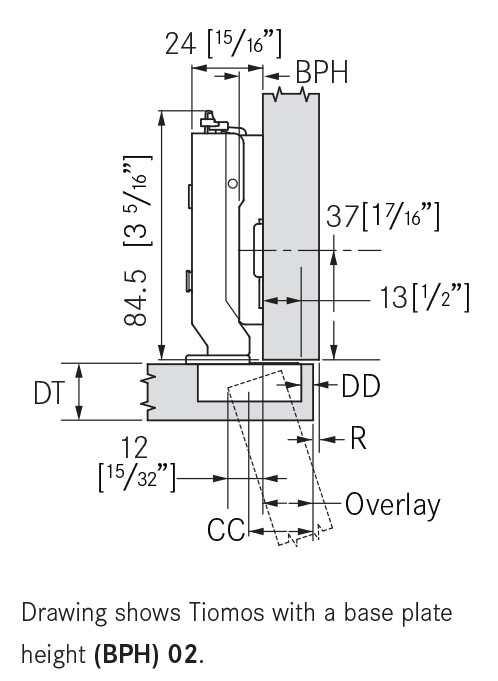

20.513/16"                      BPH = Base Palte Height
     CC = Cup Center
     DD = Drilling Distance
     DT = Door Thickness
     R = Reveal
20      0   2 3
19.5
193/4"   0   2 3
18.5          3.5
18  0   2 3
17.511/16"       3.5
17    2 3
16.5      3.5
165/8" 2 3
15.5    3.5
15  3
14.59/16" 3.5
    Base Plate Height
