Critical connections in Deck Building

10 Critical Deck Connections

Critical Deck Connections

Decks are a popular addition to homes. In 2017, nearly 24 percent of the single-family homes started that year included a deck. The same year, 25 percent of National Association of Home Builders (NAHB) remodelers reported adding a deck as one of their most common projects. Those numbers have remained pretty constant for the last decade, steadily swelling the number of decks in the United States.

According to the North American Deck and Railing Association, there are more than 50 million decks in the United States. The organization estimates that nearly half that number “are past their useful life and need to be replaced or repaired.”

A cursory internet search for “deck collapse” quickly generates dozens of recent news reports of decks failing. The most recent numbers from the Consumer Product Safety Commission (published in 2010) found there were more than 20,000 injuries due to deck structural failure or collapse between 2003 and 2007 alone.

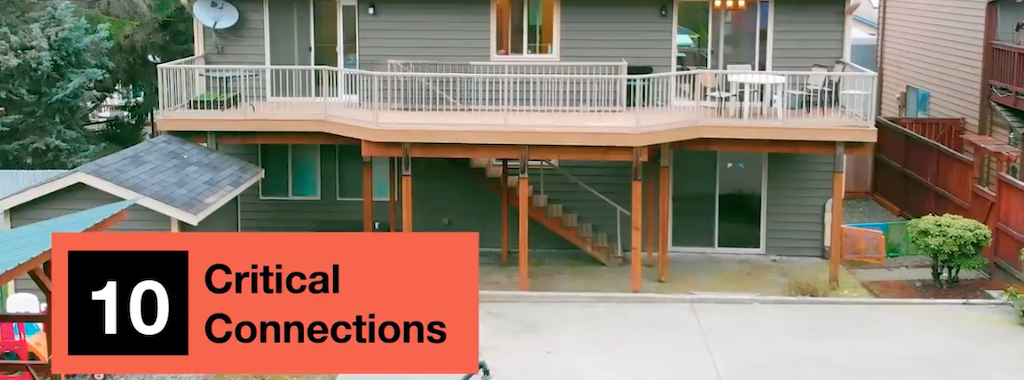

Several structural connections are essential to building a safe, code-compliant deck. Simpson Strong-Tie offers a complete line of connectors and fasteners to make those critical connections. To help homeowners and deck builders determine the right product for each of these connections, we’ve also created a video, "10 Critical Deck Connections."See the video below; you’ll find a list of the connections, with links to the products we’ve designed for keeping your friends and families safe throughout deck season — this year and for years to come.

  1. Guardrail post to deck framing

Guardrail post to deck framing

  • DTT2Z deck tension ties or Strong-Drive® SDWS Timber screws
  • HTT4 tension ties
  1. Joist to ledger

joist hanger deck connections

  • LUCZ or LUS joist hangers for most common applications
  • HUS or HUC for heavy timber applications or in complicated deck designs
  • LSSJZ and LSSRZ for angled applications
  • Outdoor Accents® APHH and APLH decorative hangers

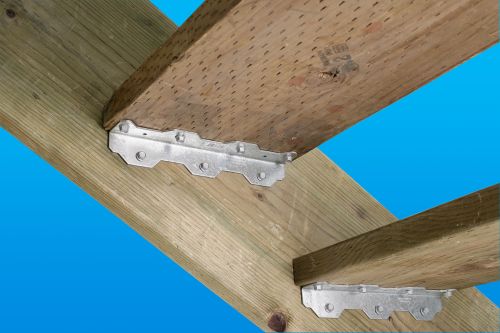

  1. Stair tread to stringer

Stair tread to stringer

  • TAZ staircase angles

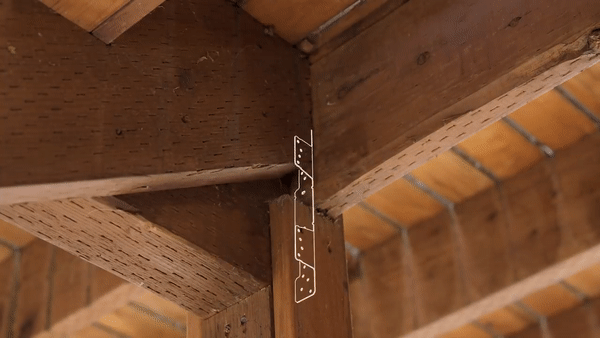

  1. Stair stringer to deck framing

lscz

  • LSCZ adjustable stair stringer connections
  1. Deck joists to the framing of the supporting structure

decktenson tie

  • DTT1Z or DTT2Z deck tension ties
  1. Joist to beam

hurricane ties

  • H1Z and H2.5AZ hurricane ties
  1. Beam to post

post cap

  • BCZ, BCSZ, CBTZ, LCEZ, ACZ, LPCZPCZ/EPCZ post caps
  • Outdoor Accents APB, APT, APL and APDJT decorative connectors
  1. Post to concrete

post cap

  • ABAZ, ABWZ, ABU, RPBZ, PBSZ or MPBZ post bases or CBSQ column bases (depending on concrete)
  1. Post-to-beam knee brace

knee brace

  • KBS1Z knee-brace stabilizer

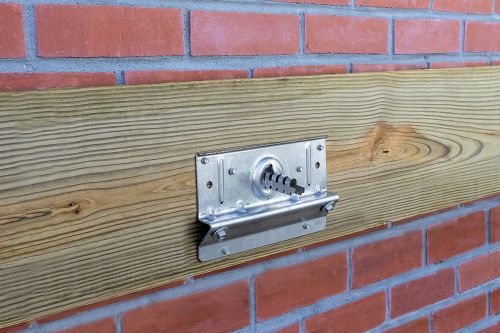

  1. Ledger to the house or supporting structure

Ledger to the house or supporting structure connecting through brick or masonry veneer

  • BVLZ for connecting through brick or masonry veneer
  • Strong-Drive SDWS or SDWH Timber screws
